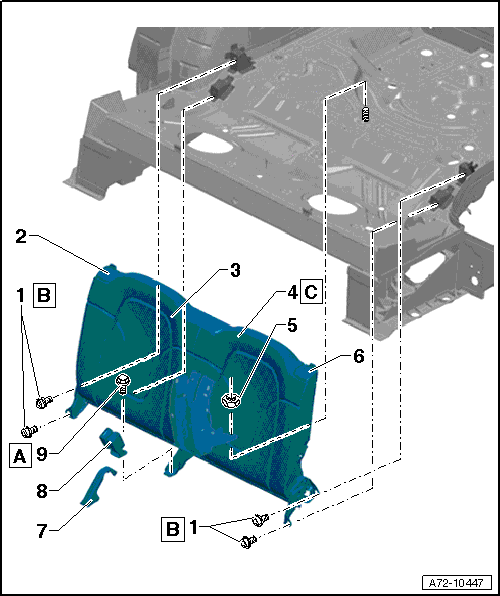

1/2 Left And Right Backrest Assembly Overview
NOTE:
When installing left and right 1/2 backrest, follow threaded connection installation sequence.
-- Tighten the screw and nut -9- hand-tight. Tighten the screws -1- to the tightening specification. Tighten the nut -5- to the tightening specification. Tighten the screw and the nut -9- to the tightening specification.
- Bolt
- 40 Nm
- Quantity: 4
- Right release
- Assembly Overview, refer to LEFT OR RIGHT RELEASE ASSEMBLY OVERVIEW
- 1/2 right backrest
- Removing and Installing, refer to BACKREST
- Left 1/2 backrest
- Removing and Installing, refer to BACKREST
- Nut
- 55 Nm
- Left release
- Assembly Overview, refer to LEFT OR RIGHT RELEASE ASSEMBLY OVERVIEW
- Center bearing cover cap
- Removing and Installing, refer to CENTER BEARING COVER CAP
- Belt latch
- Assembly Overview, refer to REAR BELT LATCH ASSEMBLY OVERVIEW
- Removing and Installing, refer to BELT LATCH
- Screw and nut
- For the correct tightening specification refer to items 3 & 4: REAR BELT LATCH ASSEMBLY OVERVIEW
