Seat Belt And Mounting Points Assembly Overview
- Belt roller/belt tensioner/switchable belt load limiter
- For front three-point seat belt
- Switchable force limiter only for certain countries

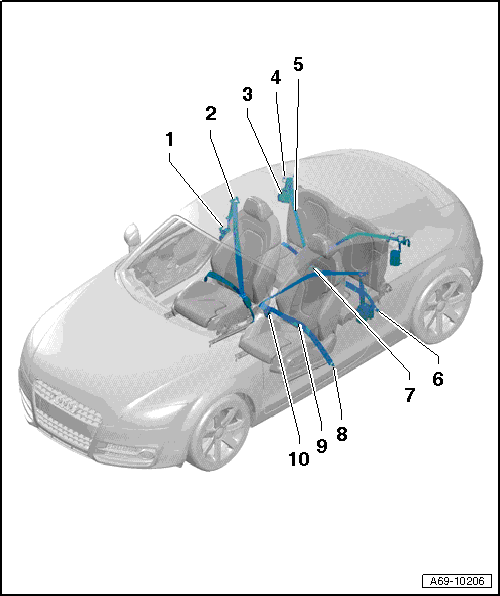

- Assembly Overview:
- Belt roller with belt tensioner FRONT THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Belt roller with tensioner and switchable force limiter FRONT THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Belt relay front anchorage point
- Removing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
- Belt roller
- For rear three-point seat belt
- Assembly Overview, refer to REAR THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Belt relay rear anchorage point
- Removing, refer to REAR THREE-POINT SEAT BELT
- Rear three-point seat belt
- Assembly Overview, refer to REAR THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Rear outer belt end fitting
- Removing, refer to REAR OUTER BELT END FITTING
- Center belt end fitting
- Removing, refer to FRONT BELT LATCH ANCHORAGE POINT ASSEMBLY OVERVIEW
- Front outer belt end fitting
- Removing, refer to FRONT OUTER BELT END FITTING
- Front three-point seat belt
- Three-point seat belt assembly overview:
- With belt tensioner, refer to FRONT THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- With belt tensioner and switchable force limiter, refer to FRONT THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Three-point seat belt assembly overview:
- Front seat belt latch securing point
- On front seat
- Assembly Overview, refer to FRONT BELT LATCH ANCHORAGE POINT ASSEMBLY OVERVIEW
- Without seat belt fasten sensor, removing and installing, refer to FRONT BELT LATCH ANCHORAGE POINT
- Seat Occupied Recognition System, Passenger Airbag Deactivation, Removing and Installing, refer to FRONT BELT LATCH ANCHORAGE POINT
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on
