Rear Three-Point Seat Belt Assembly Overview

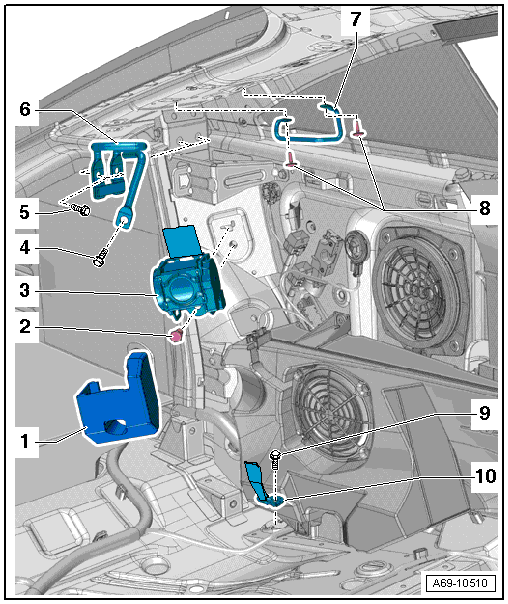

Fig 1: Rear Three-Point Seat Belt Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • For the automatic belt retractor
2. Bolt
   • 45 Nm
3. Automatic belt retractor
   • Removing and Installing, refer to REAR THREE-POINT SEAT BELT
4. Bolt
   • 45 Nm
   • Not available on all versions.
5. Bolt
   • 45 Nm
   • Quantity: 2
6. Belt guide ring
   • Depending on the version
7. Retainer
8. Bolt
   • 4.5 Nm
   • Quantity: 2
9. Bolt
   • 55 Nm
10. Belt anchor
    • Removing and Installing, refer to REAR THREE-POINT SEAT BELT
