Rear Outer Belt End Fitting

Removing

-- Remove side trim. Refer to REAR SIDE TRIM .

-- Remove subwoofer (optional equipment) on left side. Refer to Removal and Installation .

-- Remove bolt -2- from belt anchor -1-.

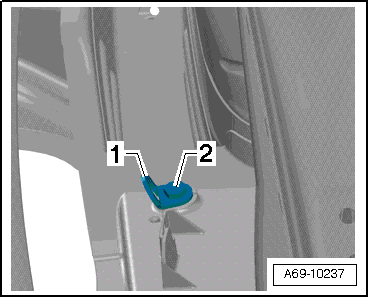

Fig 1: Removing Bolt -2- From Belt Anchor -1-

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Position belt anchor with nut on floor assembly pins so end of belt webbing faces toward inner side of vehicle.
