Rear Three-Point Seat Belt

Removing

-- Remove side trim. Refer to REAR SIDE TRIM .

-- Remove subwoofer (optional equipment) on left side. Refer to Removal and Installation .

-- Remove the rear outer belt end fitting. Refer to REAR OUTER BELT END FITTING .

-- Thread belt webbing -1- out of bracket -2- and belt relay -3-.

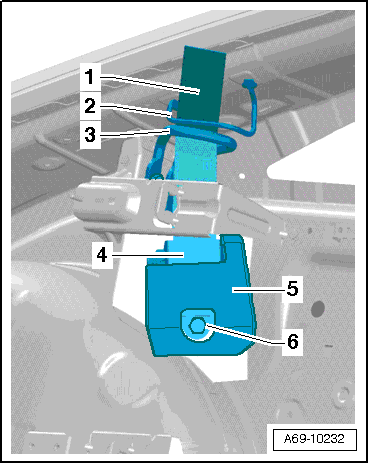

Fig 1: Threading Belt Webbing -1- Out Of Bracket -2- And Belt Relay -3-

Courtesy of AUDI OF AMERICA, LLC

-- Pull cover -5- down.

-- Remove bolt -6- and remove three-point seat belt -4-.

Installation

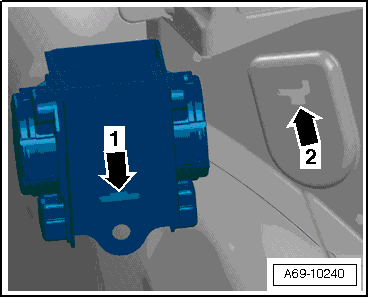

Fig 2: Inserting Three-Point Seat Belt With Anti-Twist Mechanism -Arrow 1- In Mount -Arrow 2-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Insert three-point seat belt with anti-twist mechanism -arrow 1- in mount -arrow 2-.
