SUBFRAME Mount Assembly Overview: Notes
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

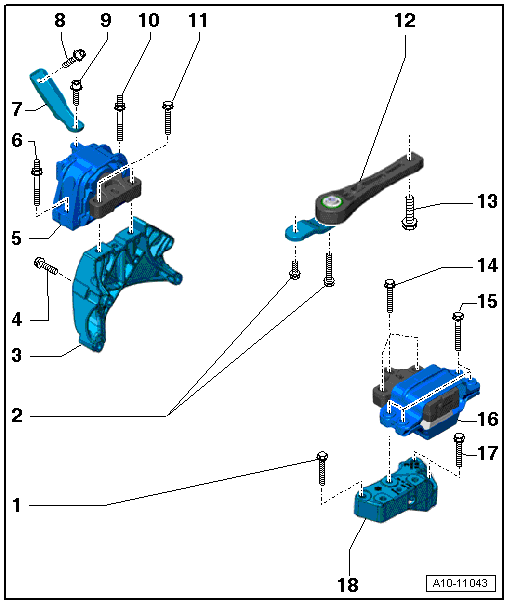

- Bolt
- Replace
- 60 Nm plus an additional 90° turn
- Transmission console to transmission
- Bolts
- Pendulum support to transmissionCAUTION:
- In the case of 02Q manual transmissions, threaded inserts (HeliCoil) can be installed in the threads of the pendulum support threaded connection. These threaded inserts are standard as of transmission build date 5/28/07.
- Difference, refer to TRANSMISSION WITH THREADED INSERTS (FOR EXAMPLE HELICOIL) FOR SECURING THE PENDULUM SUPPORT
- Bolts with strength category 10.9 must be used for all transmissions with threaded inserts (HeliCoil).
- In the case of transmissions without threaded inserts, bolts with strength category 8.8 are to be used.
- The bolt tightening specification corresponds to the strength category.
- Transmission with threaded inserts in connection with bolts of strength category 10.9:
- 50 Nm plus an additional 90° turn
- Transmission without threaded inserts and bolts with strength category 8.8:
- Always replace
- 40 Nm plus an additional 90° turn
- Pendulum support to transmission
- Engine Support
- Bolt
- Engine support to engine
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Engine Mount
- Bolt
- Engine mount to body
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Connecting Bar
- Bolt
- Connecting bar to engine
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Bolt
- Connecting bar to body
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Bolt
- Engine mount to body
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Bolts
- Engine mount to engine support
- Tightening specification, refer to [For engine(s) CETA, CCTA] Description and Operation or to [For engine(s) CDMA] Description and Operation or to [For engine(s) CBRA] Description and Operation or to [For engine(s) BPY] Description and Operation
- Pendulum Support
- Removing and installing, refer to PENDULUM SUPPORT
- Bolt
- Replace
- 100 Nm plus an additional 90° turn
- Pendulum support to subframe
- Bolt
- Replace
- 60 Nm plus an additional 90° turn
- Transmission mount to transmission console
- Bolt
- Replace
- 40 Nm plus an additional 90° turn
- Transmission mount to body
- Transmission Mount
- Removing, refer to TRANSMISSION MOUNT, REMOVING
- Installing, refer to TRANSMISSION MOUNT, INSTALLING
- Bolt
- Transmission console to transmission
- 60 Nm plus an additional 90° turn
- Replace
- Transmission Bracket
