Transmission, Installing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Depth GaugeVAS6082

Installing

Install in reverse order of removal. Note the following:

NOTE:

Replace bolts that are tightened to the specification.

Replace self-locking nuts and bolts and seals, gaskets and O-rings.

The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with hose clamps of the same type as those equipped by the factory.

To secure the air guide hoses on their connections, spray the clamps used previously with rust remover before installing.

When installing, bring all cable ties back to same positions.

Vehicles with a 3.0L TFSI Engine

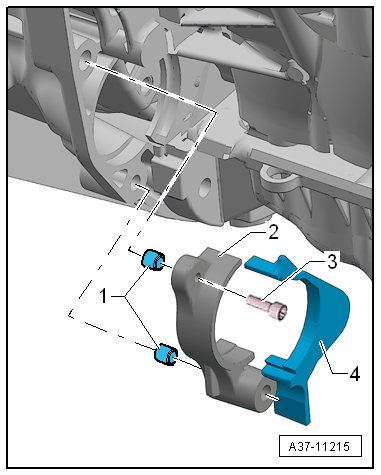

Fig 1: Starter Flange Components Location

Courtesy of AUDI OF AMERICA, LLC

-- If the transmission was replaced: install the starter flange -2- on the new transmission.

-- Attach the alignment sleeve -1- and the starter flange -2- with the bolt -3- to the transmission, tightening specification -Item 5- OVERVIEW - TORQUE CONVERTER .

-- Install the cover -4- for the starter.

All Vehicles

Tightening Specifications

NOTE:

The tightening specifications apply only to lightly greased, oiled, phosphated or blackened nuts and bolts.

Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.

Do not use any ungreased parts.

Tightening specification tolerance ± 15%.

Component		Nm
Bolts/nuts	M6	9
	M8	20
	M10	40
	M12	65

Automatic Transmission to a 3.0L TFSI Engine:

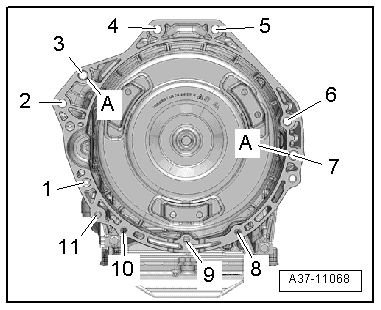

Fig 2: Identifying Aluminum Bolts - 1 Through 11 -

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt ¹⁾	Nm
1	M10 x 95	15 +90°
2... 5	M12 x 75	30 +90°
6, 7	M12 x 140	30 +90°
8, 9, 10	M10 x 60	15 +90°
11	M10x45	15 +90°
A	Alignment sleeve for centering
¹⁾ Aluminum bolts may be used two times. Refer to TRANSMISSION, INSTALLING => The aluminum bolts -1 to 11- may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow-. .

-- Check if the alignment sleeves -A- for centering the engine/transmission are in the cylinder block and insert them if they are not.

The aluminum bolts -1 to 11- may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow-.

Fig 3: Identifying Aluminum Bolts Marked With An "X"
Courtesy of AUDI OF AMERICA, LLC
To prevent damaging the bolts when marking them, do not clamp them in a vise. Insert the bolt using a 14 mm socket with a ¹ /₂ drive, which is inserted in to the vise, as illustrated.
Bolts marked with an "X" may not be used again.

Automatic Transmission to a 3.0L TDI Engine

Fig 4: Identifying Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt	Nm
1	M10 x 70 ¹⁾	65
2	M10 x 90 ¹⁾	65
3, 4, 5, 7	M12 x 80	80
6	M12 x 70	80
8, 9, 10	M10 x 70	45
A	Alignment sleeve for centering
¹⁾ Mount the auxiliary adapter.

-- Check if the alignment sleeves -A- for centering the engine/transmission are in the cylinder block and insert them if they are not.

All Vehicles

Fig 5: Measuring Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Checking position of torque converter.

When the converter is installed correctly, the distance -a- between the lower contact surfaces on threaded holes and on the torque converter and torque converter bell housing contact surfaces is at least 23 mm.

WARNING:

Danger of causing damage to the torque converter drive plate or the ATF pump.

The distance is approximately 11 mm when the torque converter is not fully installed.

-- Turn the torque converter and the engine drive plate before connecting the engine and the transmission so that the holes for the bolts -1- are at the same height as the opening on the removed starter.

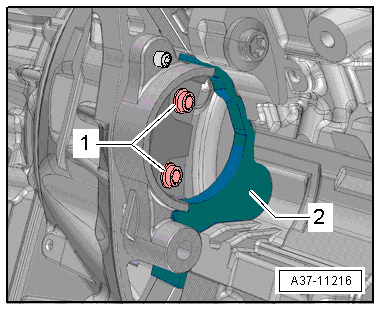

Fig 6: Starter Cover Location

Courtesy of AUDI OF AMERICA, LLC

-- Install the cover for the starter -2-.

-- Ensure no lines are kinked when sliding engine and transmission together.

-- Use new bolts to attach the torque converter to the drive plate.

-- Tighten the torque converter. Refer to TORQUE CONVERTER .

-- Install the starter. Refer to STARTER, REMOVING AND INSTALLING .

-- Install the front driveshaft. Refer to FRONT DRIVESHAFT .

-- Install the rear driveshaft. Refer to REAR DRIVESHAFT ASSEMBLY OVERVIEW .

-- Install the ATF pipes. Refer to ATF CIRCUIT .

-- Check the connectors -1 through 3- for water entry or corrosion before connecting them to the transmission. Repair them if necessary.

Fig 7: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the front driveshaft to the transfer case. Refer to FRONT DRIVESHAFT ASSEMBLY OVERVIEW .

Vehicles with a 3.0L TFSI Engine

-- Install the left rear coolant pipes. Refer to REAR COOLANT PIPE, REMOVING AND INSTALLING .

-- Install the catalytic converter. Refer to PRIMARY CATALYTIC CONVERTER, REMOVING AND INSTALLING .

Vehicles with a 3.0L TDI Engine

-- Install the upper left coolant pipes from the transmission. Refer to OVERVIEW - COOLANT PIPE ON TRANSMISSION .

-- Install the left coolant pipe from the transmission. Refer to OVERVIEW - COOLANT PIPE ON TRANSMISSION .

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Install the particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

All Vehicles

-- Install the selector lever cable and check the adjustment. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .

-- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .

-- Complete the steps required after connecting the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

CAUTION:

Danger of causing damage to the control modules due to the excess voltage.

Do not use a charger to jump start!

-- ATF level, checking and filling. Refer to ATF LEVEL, CHECKING AND FILLING .

-- After installing an exchanged transmission or after repairing transmission. Refer to ATF PIPES AND ATF COOLER, CLEANING

If the transmission was replaced:

-- Perform a transmission adaptation. Refer to TRANSMISSION ADAPTATION .
