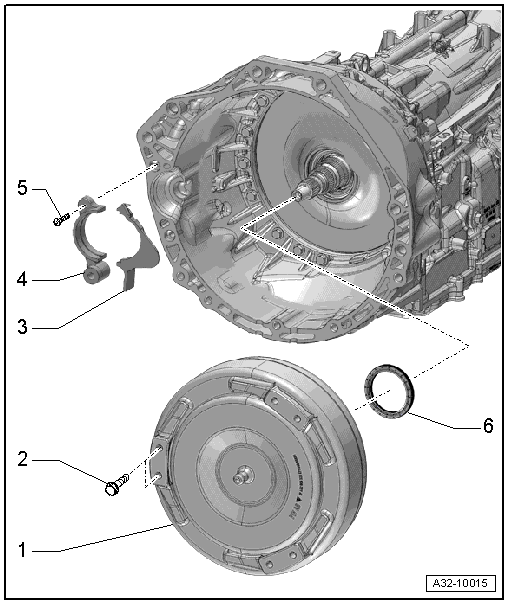

Overview - Torque Converter
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Danger of causing damage to the torque converter drive plate or the ATF pump.
- Check installation dimension of torque converter before installing transmission. Refer to TORQUE CONVERTER, INSTALLING - Installation Dimension.
NOTE:
Refer to REPAIR INFORMATION .
Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .
- Torque Converter
- Refer to TORQUE CONVERTER, DRAINING .
- Refer to TORQUE CONVERTER, CHECKING .
- Refer to TORQUE CONVERTER, INSTALLING .
- Check the installation dimension for the torque converter before installing the transmission. Refer to TORQUE CONVERTER, INSTALLING - Installation Dimension..
- Bolt
- Tightening specification: 85 Nm
- Replace
- Cover
- Version depending on the engine installed.
- The covers prevent dust and dirt from getting into the torque converter bell housing.
- Flange
- For the starter.
- 3.0L TFSI engine only
- Bolt
- Tightening specification: 9 Nm
- 3.0L TFSI engine only
- Shaft Seal
- For the torque converter.
- Refer to TORQUE CONVERTER SHAFT SEAL, REMOVING AND INSTALLING .
