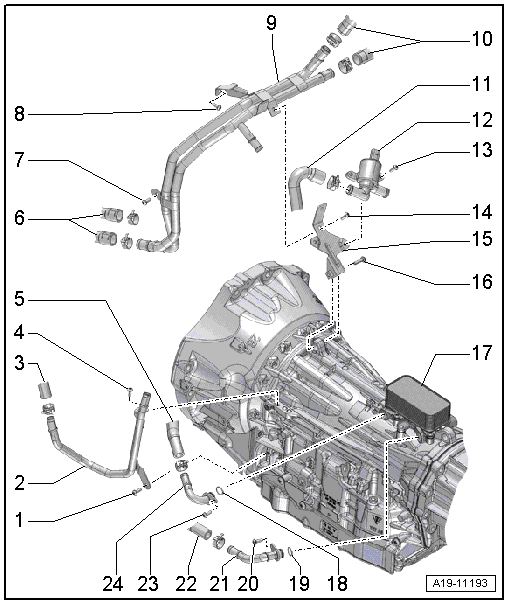

Overview - Coolant Pipe On Transmission
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Left Coolant Pipe on Transmission
- Removing and installing. Refer to LEFT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 9 Nm
- Coolant Hose
- Coolant Hoses
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Left Upper Coolant Pipe on the Transmission
- Removing and installing. Refer to LEFT UPPER COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING .
- Coolant Hoses
- Coolant Hose
- Cooling Oil Valve -N471-
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bracket
- For the Cooling Oil Valve -N471-
- Bolt
- 23 Nm
- ATF Cooler
- Removing and installing. Refer to ATF LINES AND ATF COOLER, REMOVING AND INSTALLING .
- O-ring
- Replace
- O-ring
- Replace
- Bolt
- Tightening specification. Refer to Special Tools .
- Coolant pipe
- Removing and installing. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- Tightening specification. Refer to Special Tools .
- Coolant pipe
- Removing and installing. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .
