Exhaust System, Installing Without Tension

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Align the exhaust system when cold.

Tightening specifications:

Refer to OVERVIEW - MUFFLER .
Refer to OVERVIEW - MUFFLER

Procedure

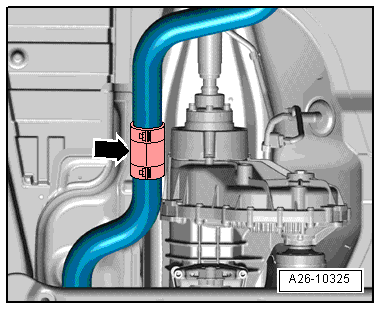

Fig 1: Clamping Sleeve Location

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolted connections for the clamping sleeve -arrow-.

-- Press exhaust system forward -arrow- under the following tension dimensions are adjusted on the individual retaining loops:

Fig 2: Identifying Left Front Retaining Loop Dimensions

Courtesy of AUDI OF AMERICA, LLC

Left front strap: -a- = 4 mm.

Right and left rear strap: -a- = 10 mm.

Fig 3: Identifying Left And Right Rear Retaining Loops Dimensions
Courtesy of AUDI OF AMERICA, LLC

-- Hold exhaust system in this position and tighten clamping sleeve screws evenly.

NOTE:

If all adjustment dimensions are not achieved, remove affected bracket from body and shift accordingly.

-- Align the tail pipes. Refer to TAIL PIPES, REPLACING .
