Shift mechanism, assembly overview: Notes
WARNING: This page is about a different variant/trim than selected.
Disassembly and assembly sequence → Shift mechanism, removing and installing
NOTE:
- Operating the manual release for shift mechanism Operating manual release for shift mechanism .

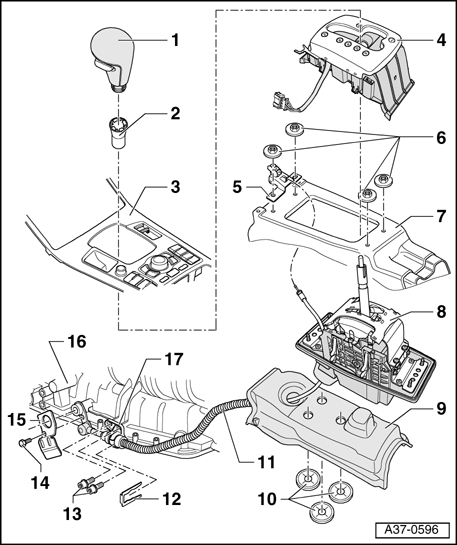

1 - Selector lever handle
- Removing and installing → Selector lever handle, removing and installing
2 - Sleeve
- Engages in selector lever knob
- Locks the removal of selector lever handle
3 - Center console cover
4 - Shift cover
- With circuit board, illumination and cover strip
- Observe notes for installation position of shift mechanism to center console cover Notes for installation position of shift mechanism to center console cover
5 - Bracket
- With rocker switch for manual release
6 - Nut - 8 Nm
- For shift mechanism to body
7 - Floor plate/body
8 - Shift unit
- Removing and installing → Shift unit, removing and installing
9 - Sound insulation panel for shift mechanism
- Fastened to shift mechanism with additional bolt (2 Nm; not show here)
10 - Lock washer
- For securing sound insulation panel to shift mechanism
- Always replace
11 - Selector lever cable
12 - Locking clip
- For selector lever cable to bracket/transmission
- Installed location: Angled end faces selector shaft lever
- Always replace
13 - Bolt - 10 Nm
14 - Bolt - 10 Nm
- For securing protective plate to selector shaft lever
15 - Protective plate
- For selector lever cable
16 - Transmission
17 - Support bracket for selector lever cable
