Keyless access authorization system - component overview

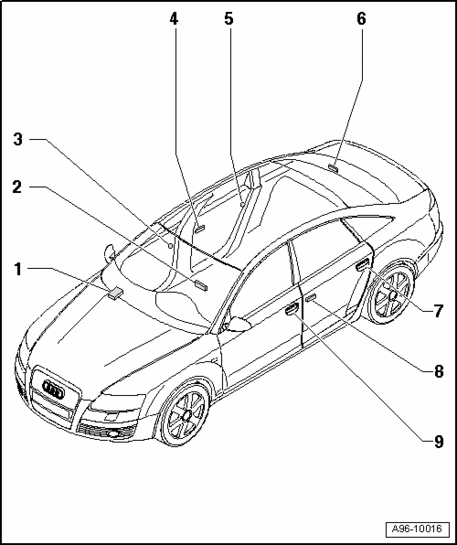

Fig 1: Keyless Access Authorization System - Component Overview

GW00024021

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Keyless Access Authorization Antenna Reader J723

Component location: Behind right luggage compartment side trim
Removing and installing → Keyless Access Authorization Antenna Reader J723, removing and installing

2 - Interior Access/Start Authorization Antenna 1 R138

Component location: Beneath front center console
Removing and installing → Interior Access/Start Authorization Antenna 1 R138, removing and installing

3 - Passengers side outside door handle

Component overview → Outside door handle for keyless access authorization system - component overview

4 - Right Access/Start Authorization Antenna R135

Component location: At rear door trim
Removing and installing → Front Passengers Access/Start Authorization Antenna R135, removing and installing

5 - Right rear outside door handle

Component overview → Outside door handle for keyless access authorization system - component overview

6 - Luggage Compartment Access/Start Authorization Antenna R137

Component location: At right luggage compartment rear cross panel
Removing and installing → Luggage Compartment Access/Start Authorization Antenna R137, removing and installing

7 - Left rear outside door handle

Component overview → Outside door handle for keyless access authorization system - component overview

8 - Left Access/Start Authorization Antenna R134

Component location: At rear door trim
Removing and installing → Drivers Access/Start Authorization Antenna R134, removing and installing

9 - Drivers side outside door handle

Component overview → Outside door handle for keyless access authorization system - component overview
