Interior Access/Start Authorization Antenna 1 R138, removing and installing

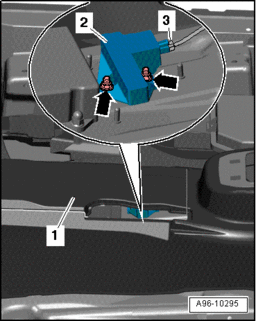

Fig 1: Identifying Insulation, Bolts, Electrical Harness Connector, And Interior Access/Start Authorization Antenna 1 R138

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

• Remove front and rear center consoles → 68 - Interior Equipment Removal And Installation .
• Remove center console frame → 68 - Interior Equipment Removal And Installation .
• Fold insulation - 1  - upward.
• Remove bolts - arrows  -.

• Disconnect electrical harness connector - 3  -.
• Remove Interior Access/Start Authorization Antenna 1 R138 - 2  -.

Installing

Installation is performed in reverse order of removal, noting the following:

• Install center console frame → 68 - Interior Equipment Removal And Installation .
• Install front and rear center consoles → 68 - Interior Equipment Removal And Installation .

Tightening torque
