Exhaust system components, removing and installing: Notes

NOTE:
  • Always replace seals, gaskets and self-locking nuts.
  • All cable ties which are opened or cut open on removal must be replaced in same position when installing.
  • Any heat insulation sleeves which are taken off when removing must be re-attached in same position when installing.
  • After working on exhaust system ensure that system is not under stress, and that it has sufficient clearance from bodywork. If necessary, loosen clamps and align mufflers and exhaust pipes so that sufficient clearance is maintained to bodywork at all points and mountings are evenly loaded.
  • Flexible pipe connection (de-coupling element) in front exhaust pipe must not be bent more than 10° - otherwise it can be damaged.

The following list pertains to Fig 1.

  1. Center muffler
    • Center muffler and rear muffler are one unit as original equipment, but can be replaced separately for repair purposes
    • Cutting point, see SEPARATING
    • Aligning exhaust system. See EXHAUST SYSTEM, ALIGNMENT .
  2. 25 Nm
  3. Mounting
    • Replace if damaged
  4. 50 Nm
    • Different versions possible
    • Always replace
  5. Turbocharger
  6. Gasket
    • Always replace
  7. Oxygen sensor - 55 Nm
    • Before catalytic converter
    • Cylinder bank 1 (right)
    • Grease threads only with high-temperature lubricant G 052 112 A3. Lubricant must not get into slots on probe body
  8. 50 Nm
    • Different versions possible Always replace
  9. Turbocharger
  10. Gasket
    • Always replace
  11. Oxygen sensor - 55 Nm
    • Before catalytic converter
    • Cylinder bank 2 (left)
    • Grease threads only with high-temperature lubricant G 052 112 A3. Lubricant must not get into slots on probe body
  12. Oxygen sensor - 55 Nm
    • After catalytic converter
    • Cylinder bank 2 (left)
    • Grease threads only with high-temperature lubricant G 052 112 A3. Lubricant must not get into slots on probe body
  13. Front exhaust pipe
  14. Front clamp
  15. 40 Nm
  16. 16 - Oxygen sensor - 55 Nm
    • After catalytic converter
    • Cylinder bank 1 (right)
    • Grease threads only with high-temperature lubricant G 052 112 A3. Lubricant must not get into slots on probe body
  17. Front exhaust pipe
  18. Rear muffler
    • On left side of vehicle
    • Rear muffler and center muffler are one unit as original equipment, but can be replaced separately for repair purposes
    • Cutting point, see SEPARATING
    • Align exhaust system. See EXHAUST SYSTEM, ALIGNMENT .
  19. 25 Nm
  20. Mounting
    • Replace if damaged
  21. 25 Nm
  22. Rear muffler
    • On right side of vehicle
    • Rear muffler and center muffler are one unit as original equipment, but can be replaced separately for repair purposes
    • Cutting point, see SEPARATING
    • Align exhaust system. See EXHAUST SYSTEM, ALIGNMENT .
  23. Cross brace
  24. 40 Nm
  25. Rear clamp

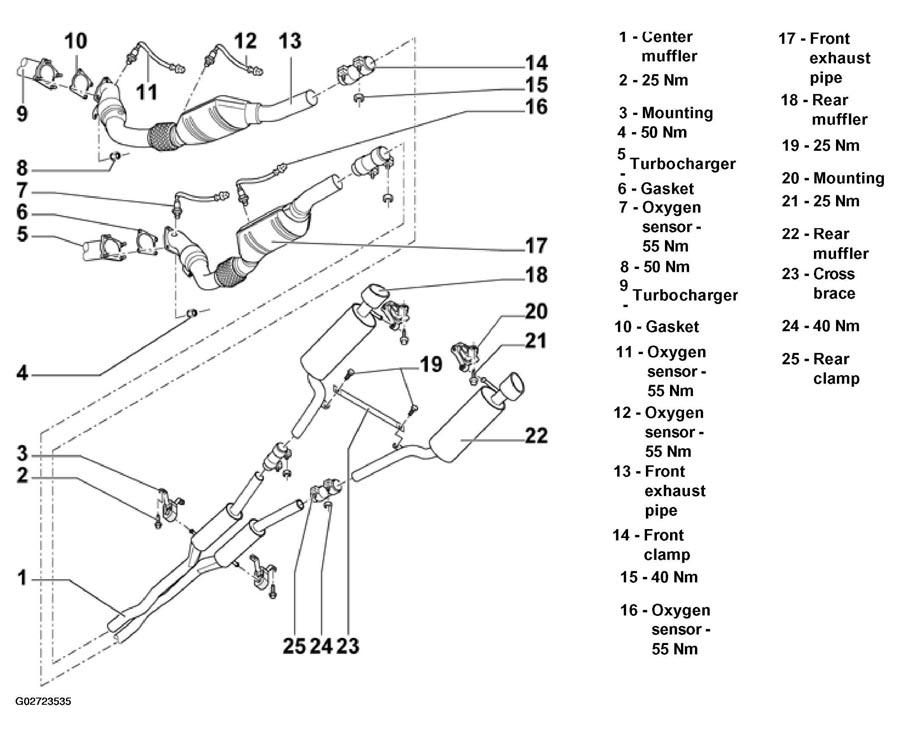

  26. Fig 1: Exploded View Of Exhaust System, Emission Controls
    G02723535Courtesy of AUDI OF AMERICA, INC.
