Exhaust System, Emission Controls
>>
Exhaust system components, removing and installing
>>

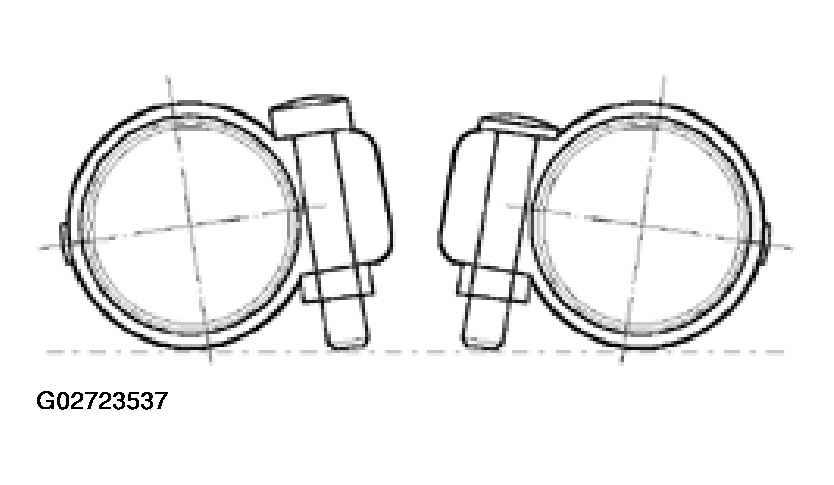

Installation position of rear clamps
Installation position of rear clamps
Install clamps so that ends of bolts are not below bottom circumference of clamp.
Bolted connections face each other
Fig 1: Installing Position Of Rear Clamps
Courtesy of AUDI OF AMERICA, INC.
