Bumper cover (sedan), assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

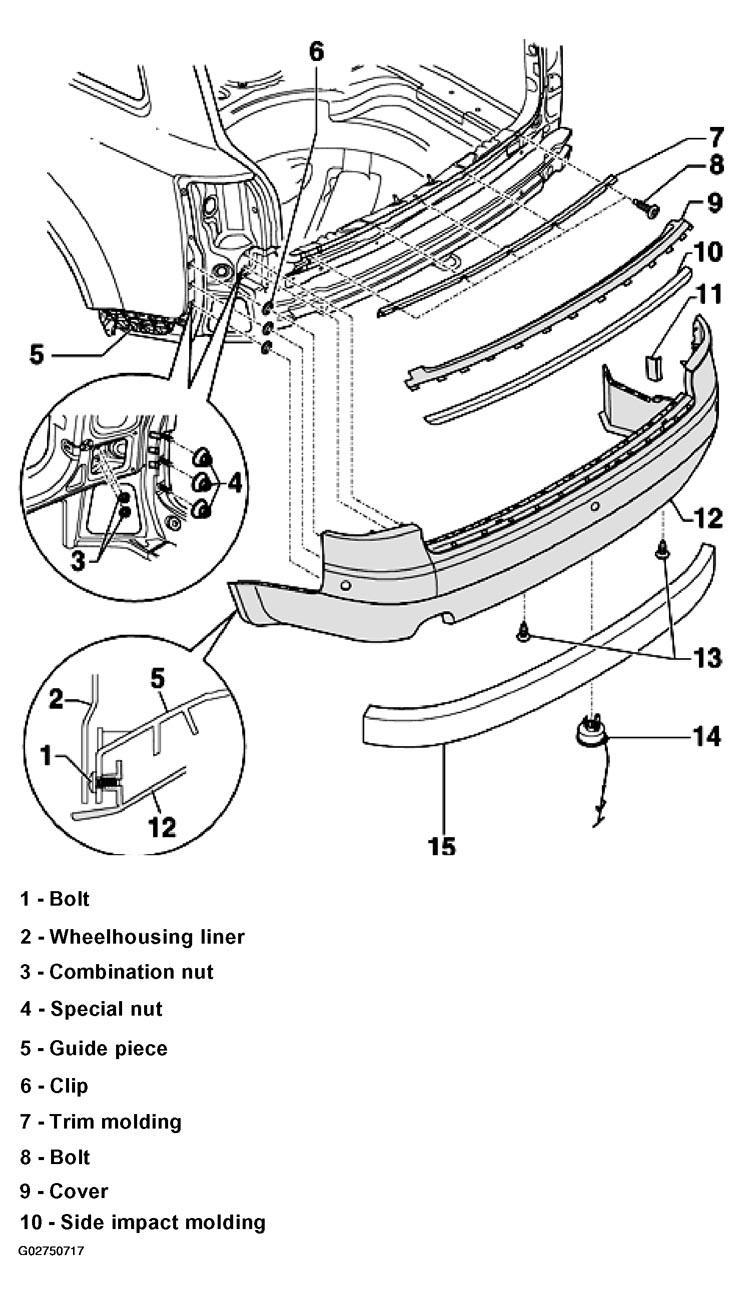

The following list pertains, to Fig 1.

Bolt
- 1 Nm
Wheelhousing liner
- Removing and installing. See REAR WHEEL HOUSING LINER, ASSEMBLY OVERVIEW .
Combination nut
- 4 Nm
Special nut
- 4 Nm
Guide piece
- Removing and installing, see GUIDE PIECE, REMOVING AND INSTALLING
Clip
- Installing: see GUIDE PIECE, REMOVING AND INSTALLING
Trim molding
Bolt
- 2 Nm
Cover
- Two-piece version
- One-piece version (for USA)
- Removing:
  - Remove side luggage compartment trim.
    See LUGGAGE COMPARTMENT SIDE TRIM, ASSEMBLY OVERVIEW (except Avant).
  - Disconnect electrical harness connectors to parking aid sensors at control module (under tail light, left side).
  - Remove special nuts -3- (accessible from luggage compartment).
  - Remove combination nuts -4-.
  - Remove wheel housing liners -2- at rear area.
  - Remove bolts -1- left and right on guide piece -5-.
  - Remove bolts -8-.
  - Unclip side pieces on guide piece.
  - Remove cover.
- Separating two-piece cover:
  - Disengage locking tabs and separate both pieces of cover.
Side impact molding
- Replace
  - Side impact moldings are secured to bumper with double-sided adhesive tape.
  - It is not possible to remove without destroying.
  - To remove, pull side impact molding away from bumper.
  - Remove any residual adhesive on bumper.
- Installation on same bumper
  - Bumper must be free of dust and grease in adhesion area
  - Clean bumper using mineral spirits or cleaning solution D 009 401 04.

NOTE: Centering holes for centering pins for the exact installation of side impact moldings are already present in bumper

Position centering pins with double-sided adhesive tape onto markings of side impact molding. See ADHERING CENTERING PINS ON SIDE IMPACT MOLDING .
Remove protective foil from double-sided adhesive tape for side impact molding.
Press side impact molding with attached centering pins firmly onto bumper over the entire surface.
