Luggage compartment side trim, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Luggage compartment trim
- Removal
  - Remove luggage compartment floor mat. See LUGGAGE COMPARTMENT FLOOR MAT, ASSEMBLY OVERVIEW .
  - Remove rear cross panel trim. See REAR CROSS PANEL TRIM, ASSEMBLY OVERVIEW .
  - Remove rear backrest. See FIXED REAR BACKREST, REMOVING AND INSTALLING .
  - Position the tie-downs -5- upward (1x or 2x depending on version).
  - Remove the two phillips-head screws -6- in tie-downs.
  - Unclip clip -3-.
  - Disengage clip -3- from tab.
  - Disengage three clips -4-.
  - If necessary, remove cover -2-.
  - Remove luggage compartment trim -1- upward.
- Installing
  - After installation has been completed, pull tailgate rubber over trim -1-.
Cover
Clip
Clips (3x)
Tie-downs
Bolts (2x)
- Tightening torque 4 Nm.

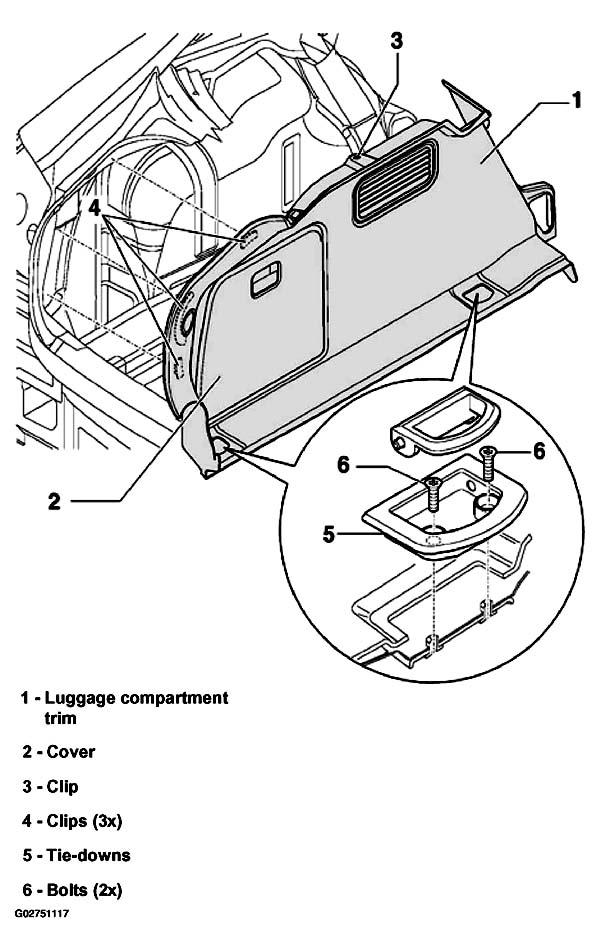

Fig 1: Identifying Luggage Compartment Side Trim, Assembly Overview

Courtesy of AUDI OF AMERICA, INC.
