Rear wheel housing liner, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

Rear wheel housing liner
- Take off rear wheel before removal.
  - Remove bolts -2-.
  - Pull wheel housing liner downward and out of wheel well.
Bolt
- 1.5 Nm
Combination bolt
- Only inserted in right side of vehicle.
Expanding nut

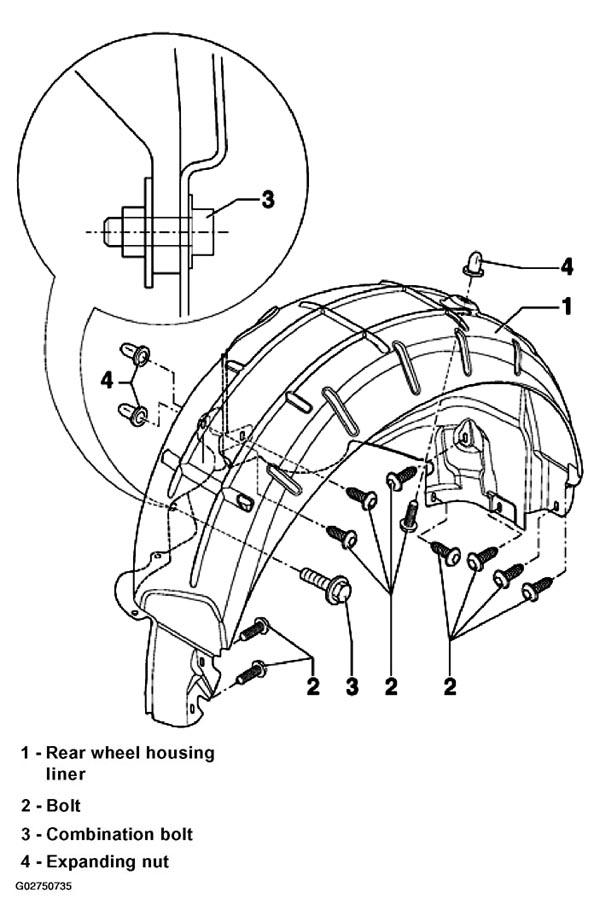

Fig 1: Identifying Rear Wheel Housing Liner Assembly

Courtesy of AUDI OF AMERICA, INC.
