Guide piece, removing and installing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Bumper removed.
Remove bolts -1- and detach guide piece -2-.
Tightening torque 1.5 Nm.
Clip -3-.

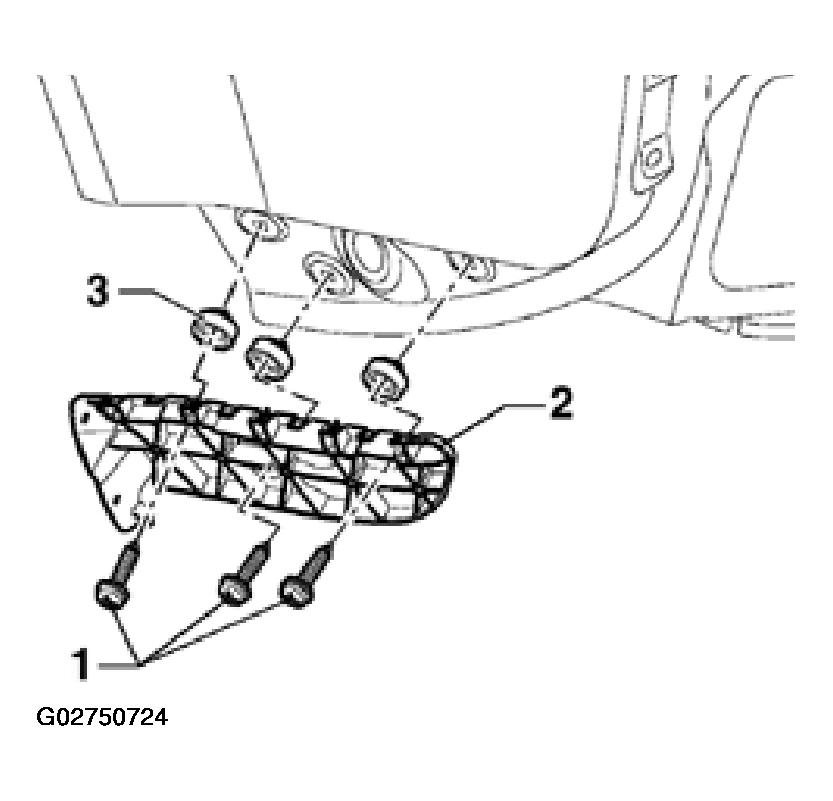

Fig 1: Removing Guide Piece

Courtesy of AUDI OF AMERICA, INC.
