Crankcase breather system

NOTE: Depending on whether the vehicle has a manual transmission or an automatic transmission, the hose layout around the distributor piece (Item 2) will be different. This is because vehicles with automatic transmission also have a suction jet pump. See SUCTION JET PUMP (VEHICLES WITH AUTOMATIC TRANSMISSION) .
NOTE: The following list refers to items in Fig 1.
  1. - Connection on valve cover for cylinder bank 1
  2. - Distributor piece
  3. - Connection on crankcase
  4. - Pressure-limiting valve
  5. - Connection on valve cover for cylinder bank 2
  6. - Fuel pressure regulator
  7. - Non-return valve (arrow indicates direction of flow)
  8. - Non-return valve (arrow indicates direction of flow)  . See also FUEL TANK BREATHER SYSTEM (EVAP SYSTEM) .

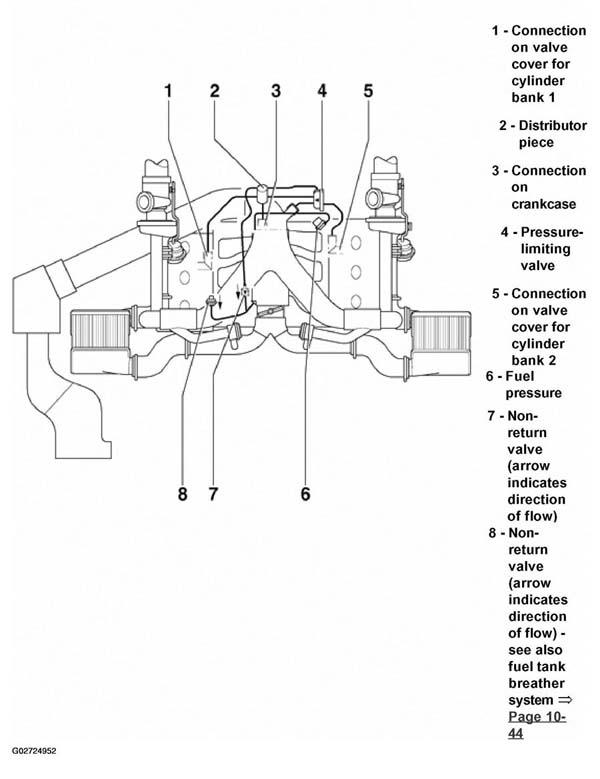

Fig 1: Identifying Crankcase Breather System Components With Vacuum Diagram
G02724952Courtesy of AUDI OF AMERICA, INC.
