Suction jet pump (vehicles with automatic transmission)

NOTE: The following list refers to items in Fig 1.

1. - To air cleaner
2. - Non-return valve (arrow indicates direction of flow)
3. - Distributor piece (simplified)
4. - To brake servo
5. - Suction jet pump
6. - Air duct
7. - Connection for crankcase breather
8. - To intake side of turbocharger, Bank 2
9. - Intake manifold
10. - To intake side of turbocharger, Bank 1

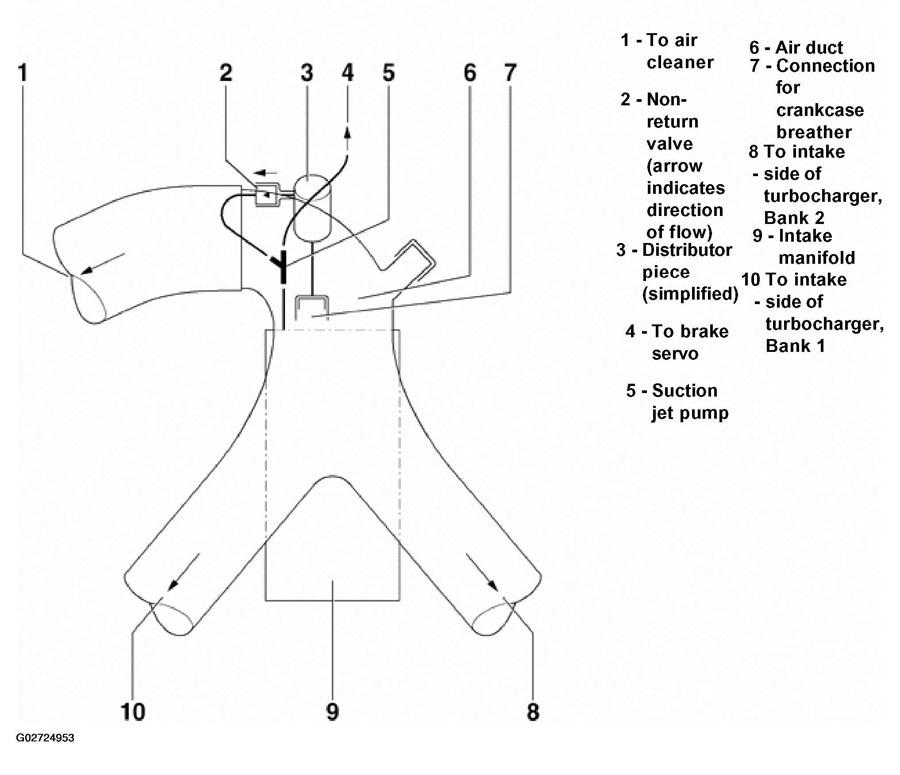

Fig 1: Identifying Suction Jet Pump System Components With Vacuum Diagram (Vehicles With Automatic Transmission)

Courtesy of AUDI OF AMERICA, INC.
