Fuel tank breather system (EVAP system)

NOTE: The following list refers to items in Fig 1.
  1. - Activated charcoal filter
  2. - Solenoid valve 1 for activated charcoal filter - N80-
  3. - Non-return valves (arrows indicate direction of flow)

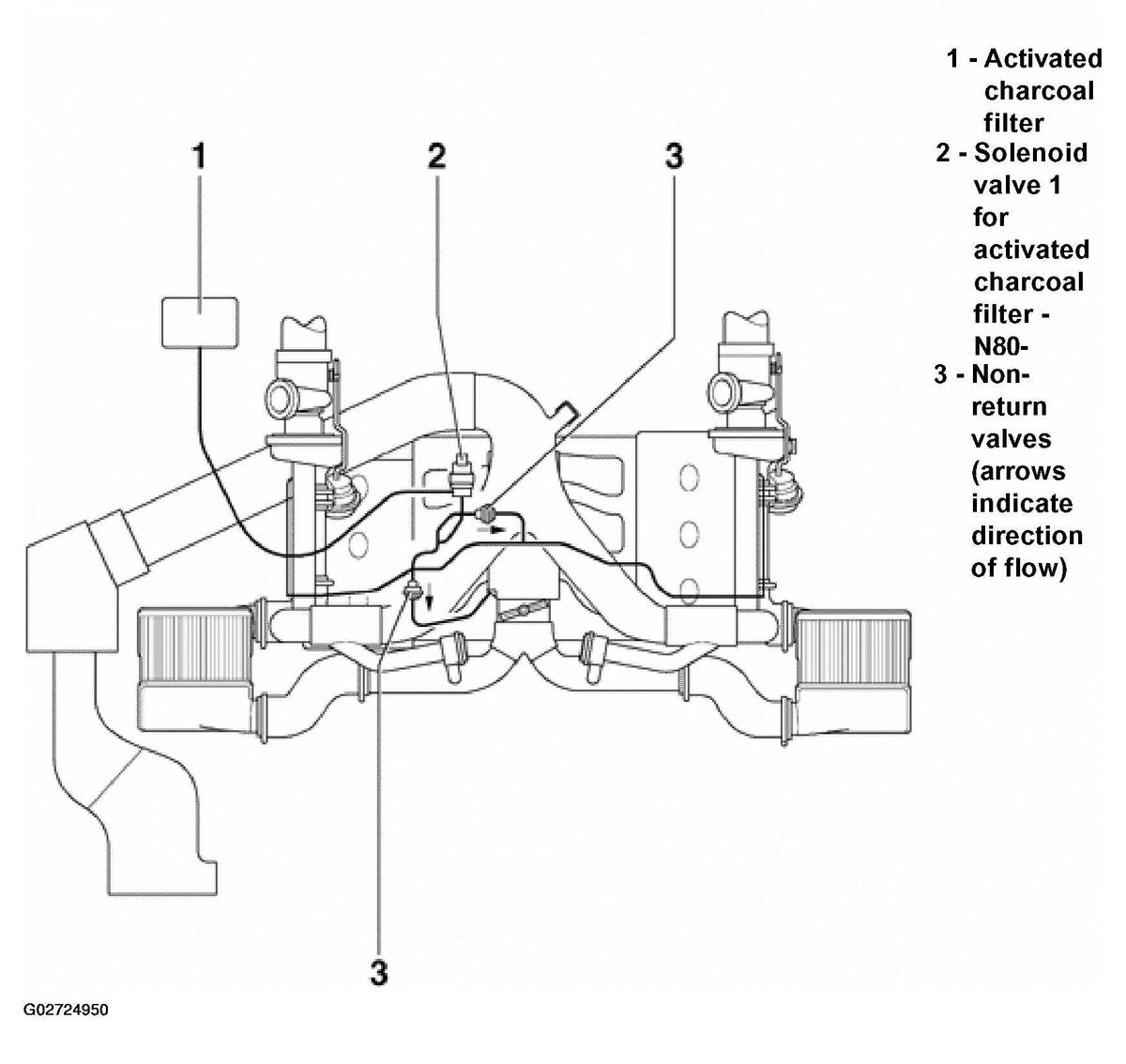

Fig 1: Identifying Fuel Tank Breather (EVAP) System Components With Vacuum Diagram
G02724950Courtesy of AUDI OF AMERICA, INC.
