Center console trim molding, removing and installing

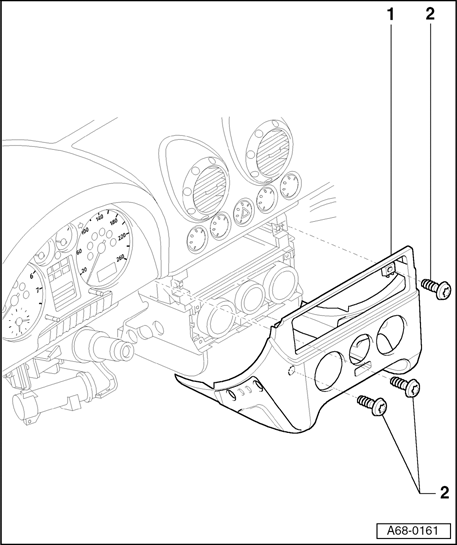

Fig 1: Center Console Trim Molding Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center console trim molding

• Remove grab handles on center console → Center console grab handles, removing .
• Remove front ashtray → Front ashtray, removing and installing .
• Remove radio → 91 RADIO, TELEPHONE, NAVIGATION, TRIP COMPUTER .
• Remove screws - 2  - (3x).

• Unclip center console trim molding - 1  -.

2 - Screws (3x)

• Tightening torque 1.5 Nm
