Center console grab handles, removing

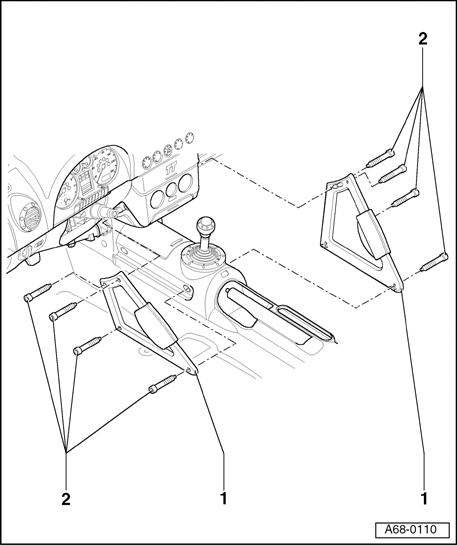

Fig 1: Center Console Grab Handles Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center console grab handles

• Remove screws - 2  - (8x).
• Pull out center console grab handles - 1  -.

2 - Screws (8x)

• Tightening torque 10 Nm
