Adaptation channel 02-Resetting SRI after service

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Service Reminder Indicator (SRI) is used to remind the driver when a service is necessary. Indication is in center display.
Service reminder appears 1 month or 1200 miles before service limit is reached. Example for display: After a total driving distance of 7000 miles, "SERVICE IN 1000 miles" is indicated.
When a service event arrives, the text information appears in the center display for 5 seconds when ignition is switched on. It is shown after the note for automatic transmission and a target input for navigation (if applicable). Display: "SERVICE!".
The currently valid specifications can be found in the "Maintenance" book.
See MAINTENANCE .

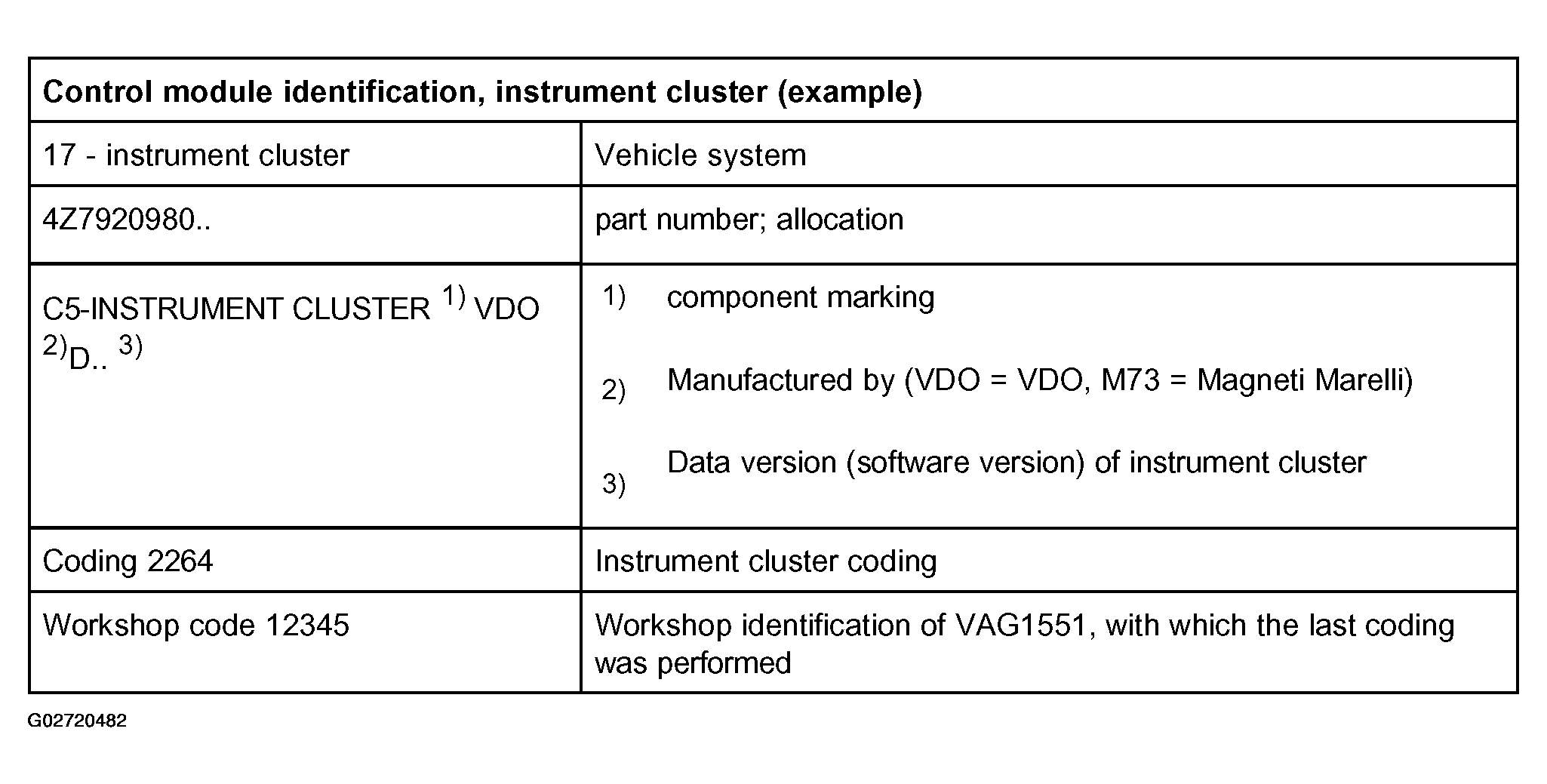

Data version of instrument cluster. See Figure .
Channels 40, 41 and 45 are automatically set to "0".

Display on VAS 5051:

Fig 1: VAS 5051 Tester Display - Adaptation Channel 02, Resetting SRI After Service (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter channel number Max. input value = 99

Select function "02" in button field -2- for "Adaptation channel 02" and press Q button to confirm input.

Display on VAS 5051:

Fig 2: VAS 5051 Tester Display - Adaptation Channel 02, Resetting SRI After Service (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1 - Channel 2 read and test
2 - No indication
5 - Sliding bar is positioned on "1" Service is active, i.e. "SERVICE!" is displayed in the instrument cluster.

The service event is reset using the following adaptation value:

ADAPTATION VALUE

Adaptation value	Service event
00000	Reset

Change adaptation value using the sliding bar. See A - Changing adaptation value using sliding bar: .

Change adaptation value via direct input. See B - Change adaptation value via direct input: .
Enter adaptation value "00000".

Display on VAS 5051 after performed adaptation:

Fig 3: VAS 5051 Tester Display - Adaptation Channel 02, Resetting SRI After Service (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Channel 2 Value 0 stored

NOTE: 0 means service has been reset, i.e. "SERVICE IN 1000 MI" is displayed in instrument cluster after call-up.

End function "10 - Adaptation" by pressing <= button.
