Parking assistance On Board Diagnostic (OBD), initiating: Procedure

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Display on VAS 5051:

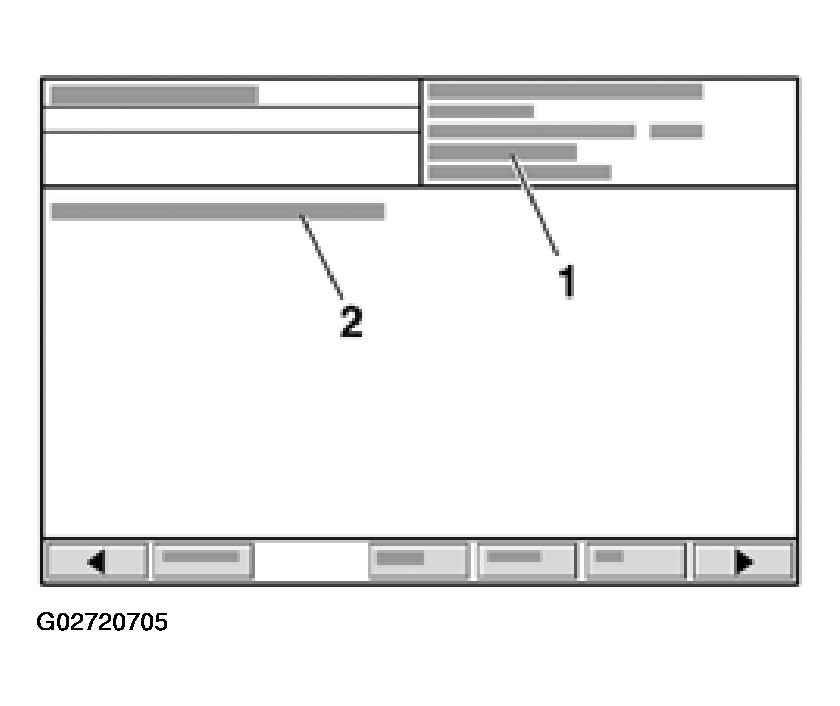

Fig 1: Display On VAS 5051 - Parking Assistance On Board Diagnostic (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Press vehicle system "76 parking assistance" in selection -1-.
Wait until the next indication appears on display.

Display on VAS 5051:

Fig 2: Display On VAS 5051 - Parking Assistance On Board Diagnostic (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Control module identification of control module

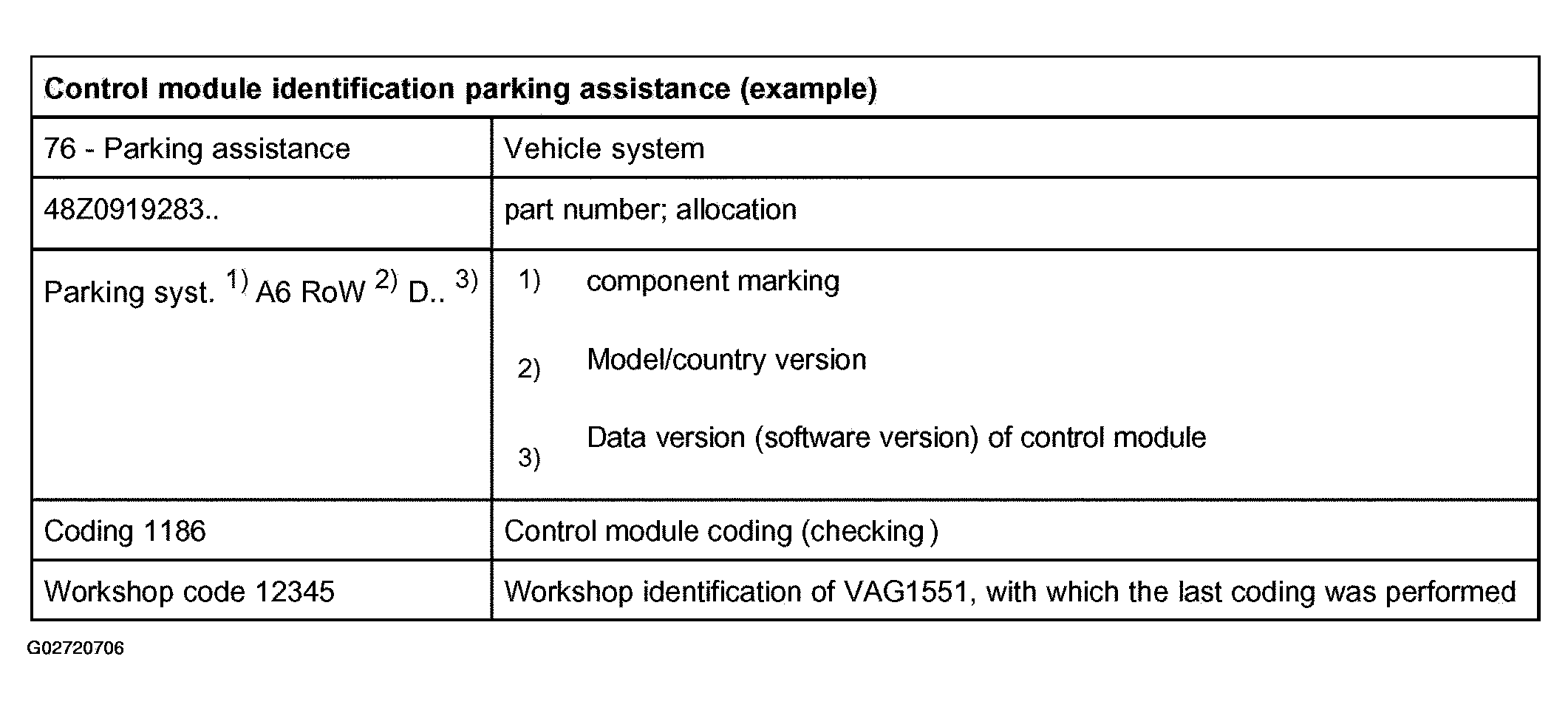

Fig 3: Control Module Identification - Parking Assistance (Example)

Courtesy of AUDI OF AMERICA, INC.

NOTE: In the previous graphic refer to:

Code Control Module (function 07) for control module coding

Click on --> button

Display on VAS 5051:

Selection of diagnostic functions:

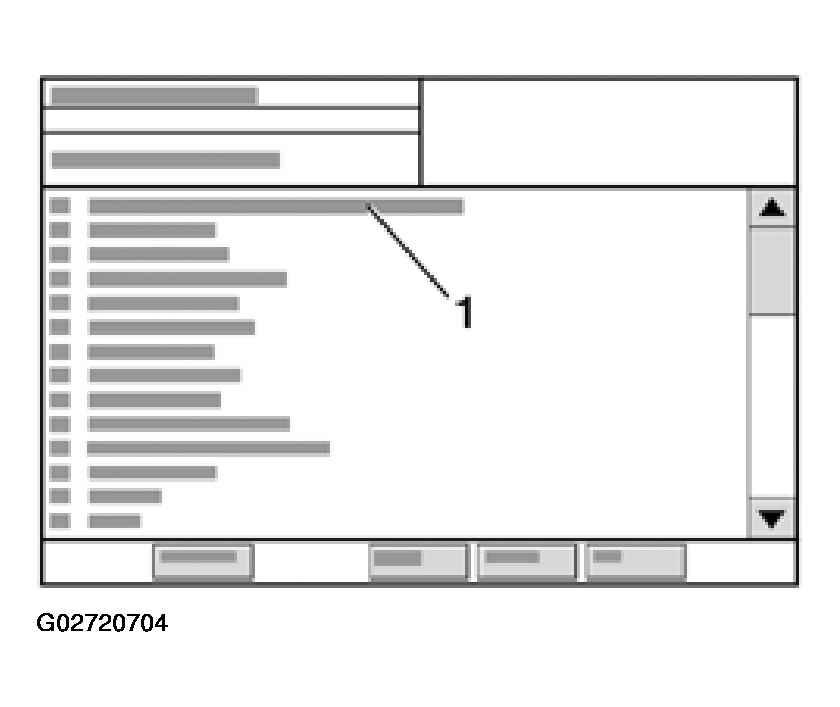

Fig 4: Display On VAS 5051 - Parking Assistance On Board Diagnostic (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

PARKING ASSISTANCE DIAGNOSTIC FUNCTIONS

Diagnostic functions
02 Check DTC Memory	See CHECK DTC MEMORY (FUNCTION 02) .
03 Output Diagnostic Test Mode (DTM)	See OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03) .
04 Basic Setting	-
05 Erase DTC Memory	See ERASE DTC MEMORY (FUNCTION 05) .
06 End Output	See END OUTPUT (FUNCTION 06) .
07 Code Control Module	See CODE CONTROL MODULE (FUNCTION 07) .
08 Read Measuring Value Block	See READ MEASURING VALUE BLOCK (FUNCTION 08) .
09 Read Individual Measuring Value	-
10 Adaptation	See ADAPTATION (FUNCTION 10) .
11 Login Procedure
