Read Measuring Value Block (function 08)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Initiate On Board Diagnostic (OBD) of parking assistance. See PARKING ASSISTANCE ON BOARD DIAGNOSTIC (OBD), INITIATING .

Display on VAS 5051:

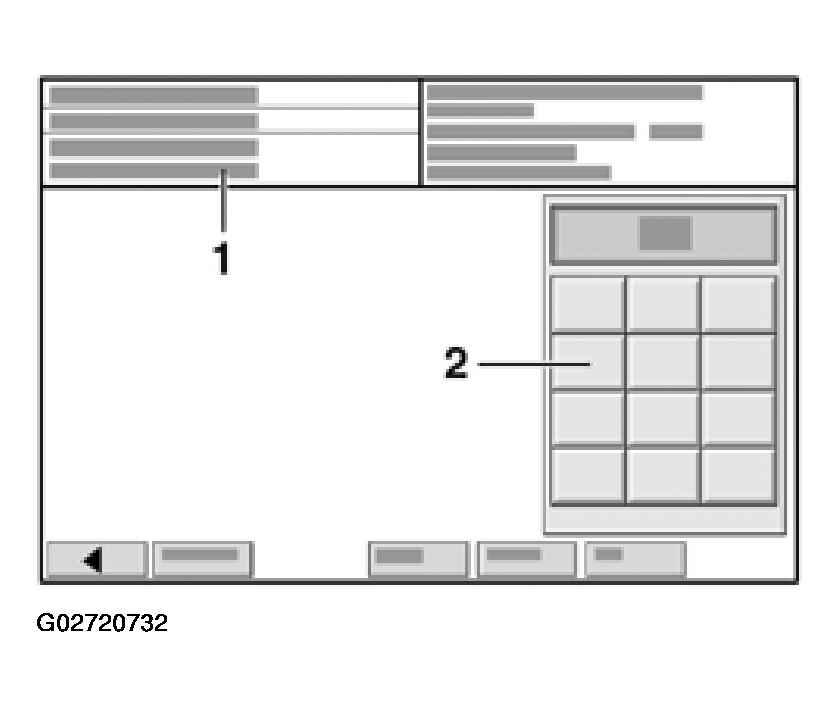

Fig 1: Display On VAS 5051 - Measuring Value Block (Parking Assistance) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Select diagnostic function "08 - read measured value block" in selection -1-.

Display on VAS 5051:

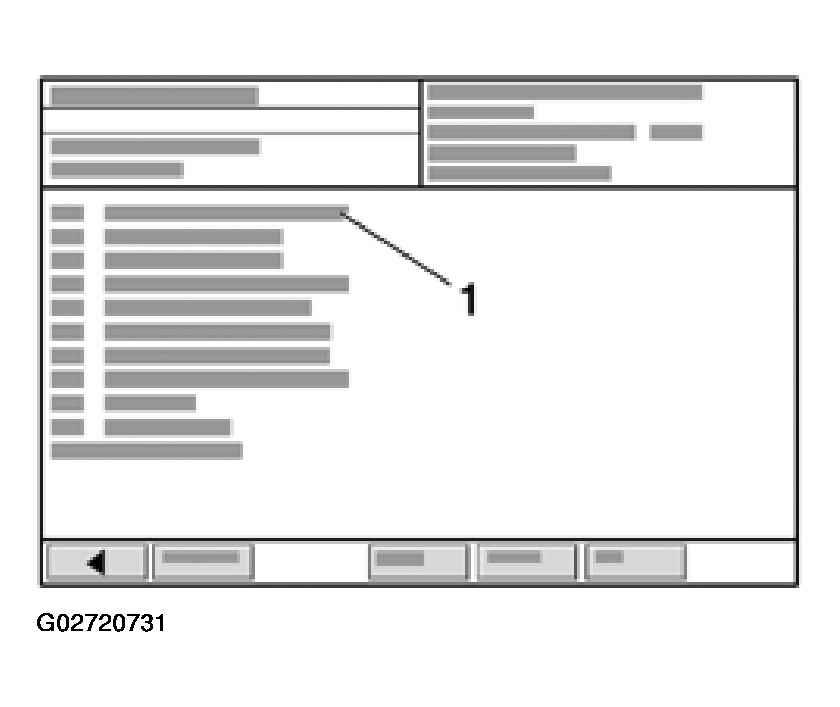

Fig 2: Display On VAS 5051 - Measuring Value Block (Parking Assistance) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter display group Max. input value = 255

Input desired display group number in button field -2-. See 4-CHANNEL PARKING ASSISTANCE, DISPLAY GROUP OVERVIEW or for 8-channel parking assistance, see 8-CHANNEL PARKING ASSISTANCE, DISPLAY GROUP OVERVIEW .
Press -Q- button to confirm input.

Display on VAS 5051:

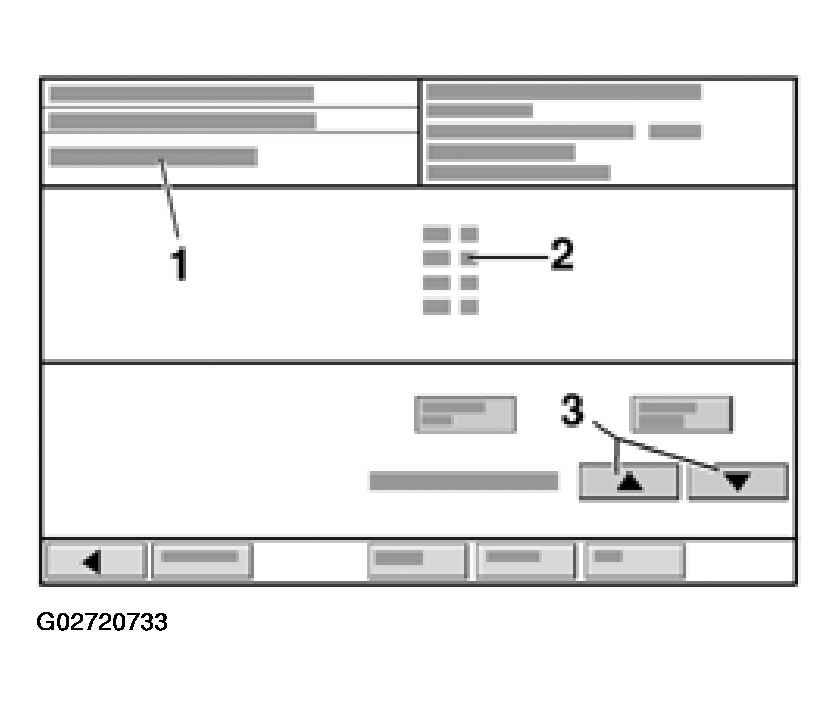

Fig 3: Display On VAS 5051 - Measuring Value Block (Parking Assistance) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Display group X
1. Display field 1
2. Display field 2
3. Display field 3
4. Display field 4

NOTE:

If no display follows, a display field is not assigned.
To switch to a different display group, proceed as follows:

SWITCHING DISPLAY GROUPS

Display group	VAS 5051 tester
Higher	press up button.
Lower	Press down button.

Press "08 - Erase DTC Memory" to end function <-- button.
