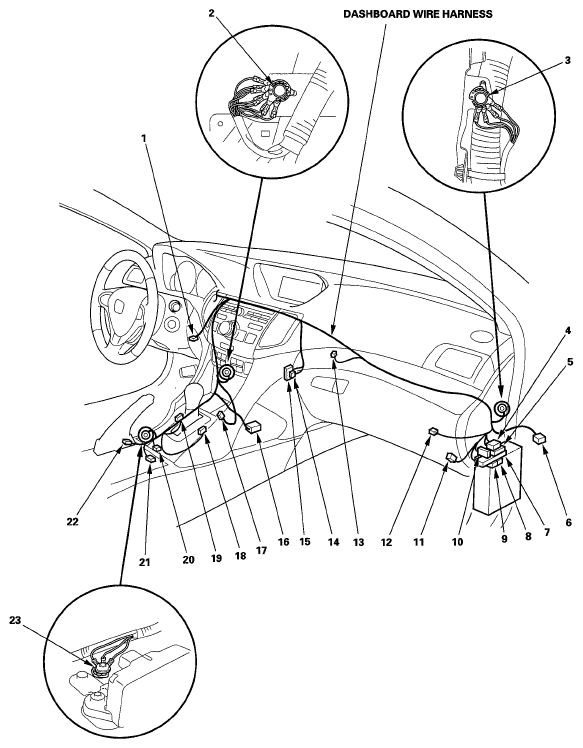

Dashboard Wire Harness (View of middle to passenger's side)
DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/T gear position indicator panel light/park-pin switch | 20 | 6 | Under center console | A/T | |
| Driver's seat heater switch | 19 | 6 | Under center console | ||
| Front accessory power socket | 17 | 2 | Under center console | ||
| Front passenger's airbag inflator | 13 | 4 | Under right side of dash | ||
| Front passenger's footwell light | 12 | 2 | Under right side of dash | ||
| Front passenger's seat heater switch | 18 | 7 | Under center console | ||
| In-car temperature sensor | 1 | 2 | Middle of dash | ||
| Parking brake switch | 22 | 1 | Center console | ||
| Passenger's under-dash fuse/relay box connector A (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 7 | 38 | Under right side of dash | ||
| Passenger's under-dash fuse/relay box connector B (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 8 | 1 | Under right side of dash | ||
| Passenger's under-dash fuse/relay box connector C (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 9 | 12 | Under right side of dash | ||
| SRS unit connector A | 16 | 39 | Under middle of dash | ||
| Yaw rate-lateral acceleration sensor | 21 | 4 | Under center console | ||
| C204 | 5 | 2 | Under left side of dash | Right engine compartment | wire harness (Dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) |
| C205 | 4 | 16 | Under left side of dash | Right engine compartment wire harness (Dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C206 | 10 | 4 | Under left side of dash | Right engine compartment wire harness (Dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C401 | 15 | 28 | Under middle of dash | Audio wire harness (without navigation system) (see
AUDIO WIRE HARNESS (WITHOUT NAVIGATION SYSTEM) ) Audio wire harness (with navigation system) (see AUDIO WIRE HARNESS (WITH NAVIGATION SYSTEM) ) |
|
| C402 | 14 | 16 | Under middle of dash | Audio wire harness (without navigation system) (see
AUDIO WIRE HARNESS (WITHOUT NAVIGATION SYSTEM) ) Audio wire harness (with navigation system) (see AUDIO WIRE HARNESS (WITH NAVIGATION SYSTEM) ) |
|
| C651 | 11 | 18 | Under right side of dash | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) | |
| C761 | 6 | 23 | Under right side of dash | Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS ) | |
| G503 | 2 | Under middle of dash | Body ground, via dashboard wire harness | ||
| G504 | 23 | Under center console | Body ground, via dashboard wire harness | ||
| G505 | 3 | Under center console | Body ground, via dashboard wire harness |
