A/C Wire Harness

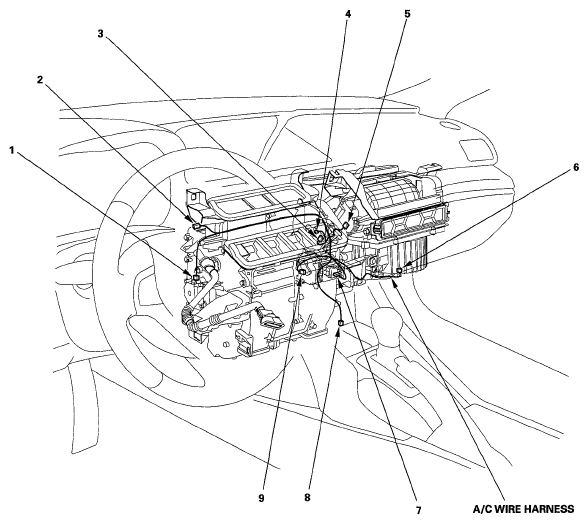

A/C WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Blower motor | 6 | 2 | Under right side of dash | ||
| Driver's air mix control motor | 1 | 7 | Under middle of dash | ||
| Evaporator temperature sensor | 4 | 2 | Under middle of dash | ||
| Mode control motor | 3 | 7 | Under middle of dash | ||
| Passenger's air mix control motor | 9 | 7 | Under middle of dash | ||
| Power transistor | 7 | 4 | Under middle of dash | ||
| Recirculation control motor | 5 | 7 | Under middle of dash | ||
| C351 | 2 | 2 | Under middle of dash | Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) ) | |
| C409 | 8 | 20 | Under middle of dash | Audio wire harness (with navigation system) (see
AUDIO WIRE HARNESS (WITH NAVIGATION SYSTEM) ) Audio wire harness (without navigation system) (see AUDIO WIRE HARNESS (WITHOUT NAVIGATION SYSTEM) ) |
