Remove power steering pump from engine

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

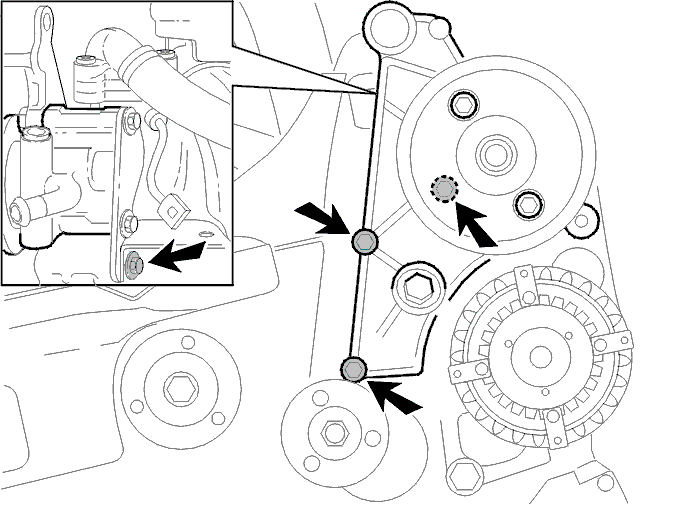

Fig 1: Removing Power Steering Pump From Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket from between the alternator and the inlet manifold, see Removing the fuel line
Undo the bracket
Pull the poly V belt out
Remove the bracket between the pump and the inlet manifold
Remove the rear bolt at the top
Remove the rear bolt at the bottom
Pull the power steering pump off and place it to the side.
