Removing fuel line

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

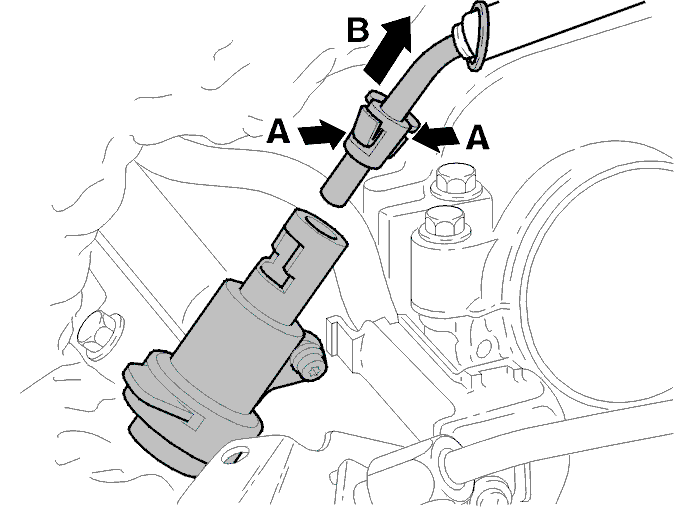

Fig 1: Removing/Installing Fuel Line From Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the quick-release connector between the fuel line and the fuel rail. Use tool 9512666 .

Remove the mounting screws from the fuel rail.

Gently work the fuel rail and injector nozzles loose as a single unit.
