Checking Steering Gear Housing For Play
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Put the wheels pointing straight ahead and switch the engine off.

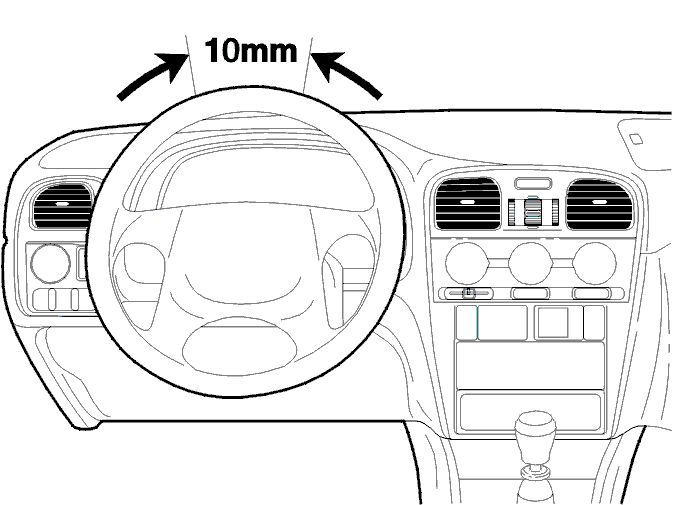

Apply a force of 5 Nm to the steering wheel.
The maximum play in the steering gear must not be more than 10 mm.
If the play in the steering gear is more than 10 mm:
- Check the pre-stress on the pinion, see Adjusting Pre-Tension On Pinion .
