Checking Steering Gear For Play

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

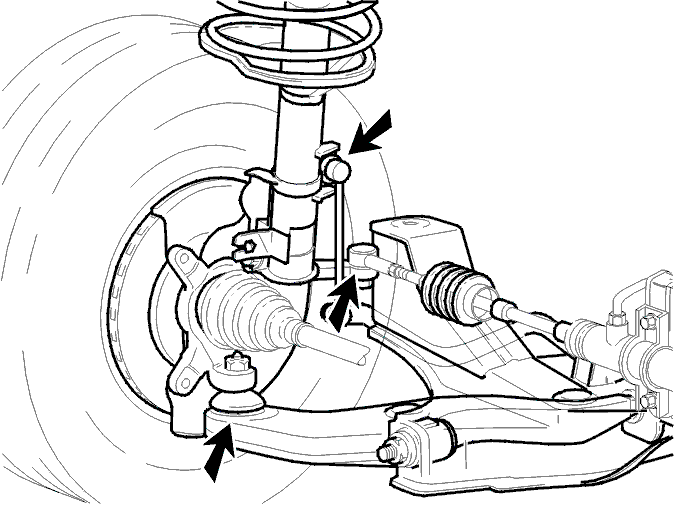

Fig 1: Checking Steering Gear For Play
GLL116362Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the joints for play.

Remove worn components as necessary.

If there is still play: see Checking Steering Gear Housing For Play .
