Securing the front seat
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

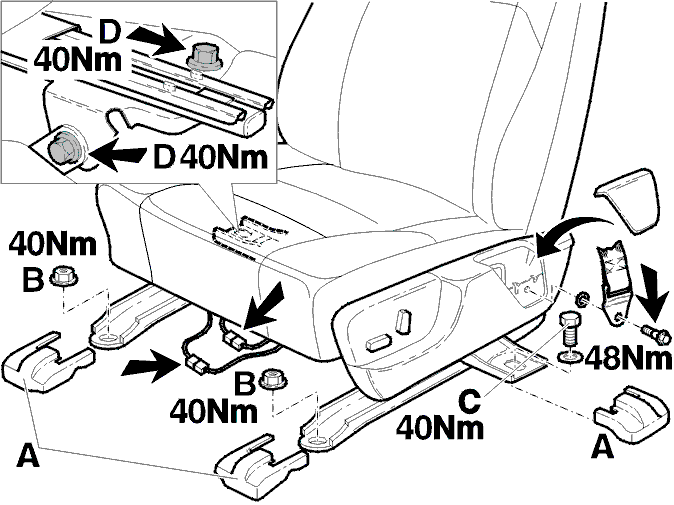

Work the seat backwards.
Connect the connectors for the heater, seat belt, power operation and SRS. See SRS connector .
Work the seat forwards and position it over the front mounting screws.
Install the front nuts (B). Tighten the nuts by hand.
Move the seat to its most forward position.
Install:
- the seat belt mounting. Tighten to 48 Nm
- the cover on the side by pressing it into place at the top edge
- the rear screws (D). Finger tighten
- the screw (C). Finger tighten.
Tighten the screws. Tighten to 40 Nm .
Install:
- the splash guards (A)
- the rear center console. See Panels and consoles (-2000), Rear center console (2001) or Rear center console (2002-).
