Install contact reel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the orange connector to the contact reel.

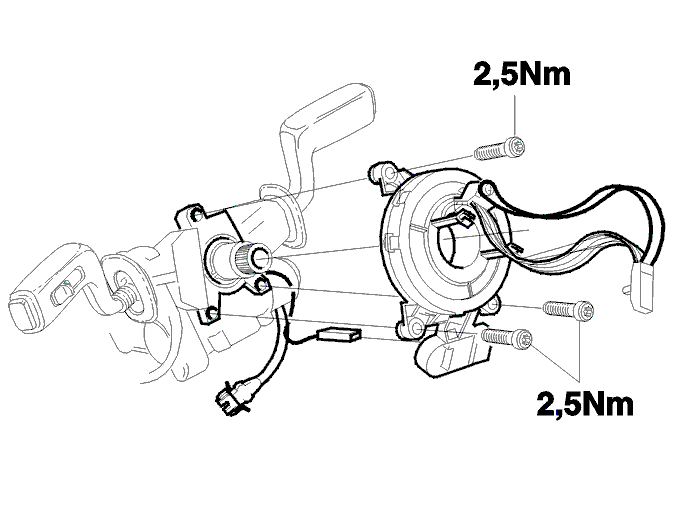

- Put the contact reel in place and press it well into the mounting tab. Tighten the screws for the contact reel with 1.8 ft. lbf.
- Attach the signal horn cable connector.
- Ensure that no cabling is jammed.
- Apply contact grease to the rail to ensure good conductivity.
If the locking screw is not tightened before installing the contact reel, first perform in accordance with Setting the contact reel into the middle position .
