Setting the contact reel into the middle position
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

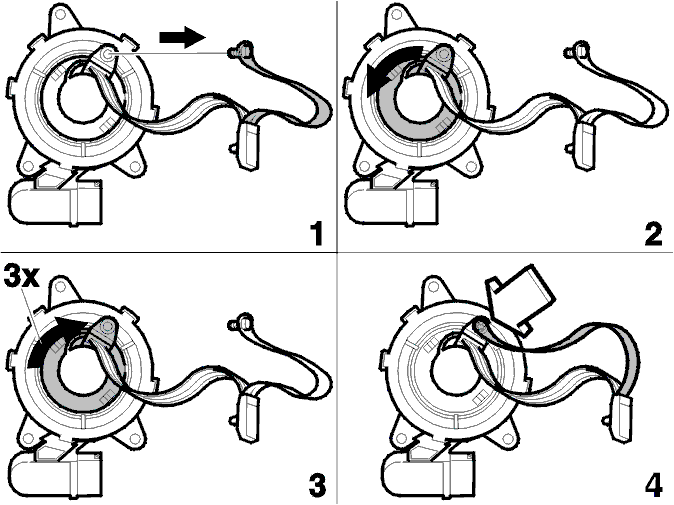

A new contact reel is supplied in the middle position with a locking screw installed. Check that the locking screw is fastened as shown.
- Undo the locking screw so that the contact reel can be turned.
- Turn the contact reel fully to the right.
- Turn the contact reel approximately three times to the left.
- The slot of the screw must then be in the 1 o'clock position, as shown.
- Secure the contact reel in this position with the locking screw.
