Removing the radio panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

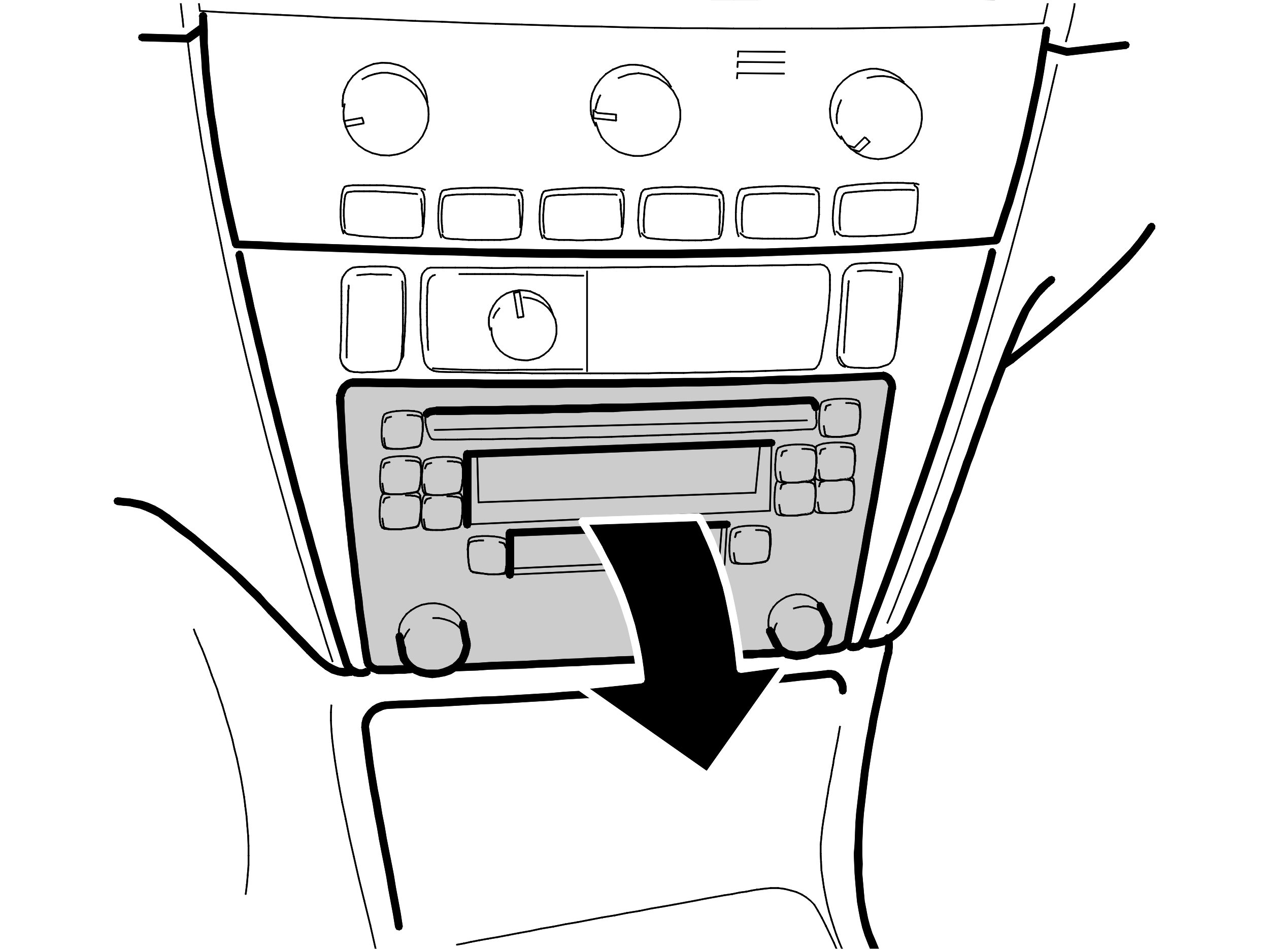

Fig 1: Removing Radio Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of the radio code.

Press in the catches to release them.

Grip the catches. Pull the radio out.

Disconnect the connector.

If required: Remove the compartment from the center console.

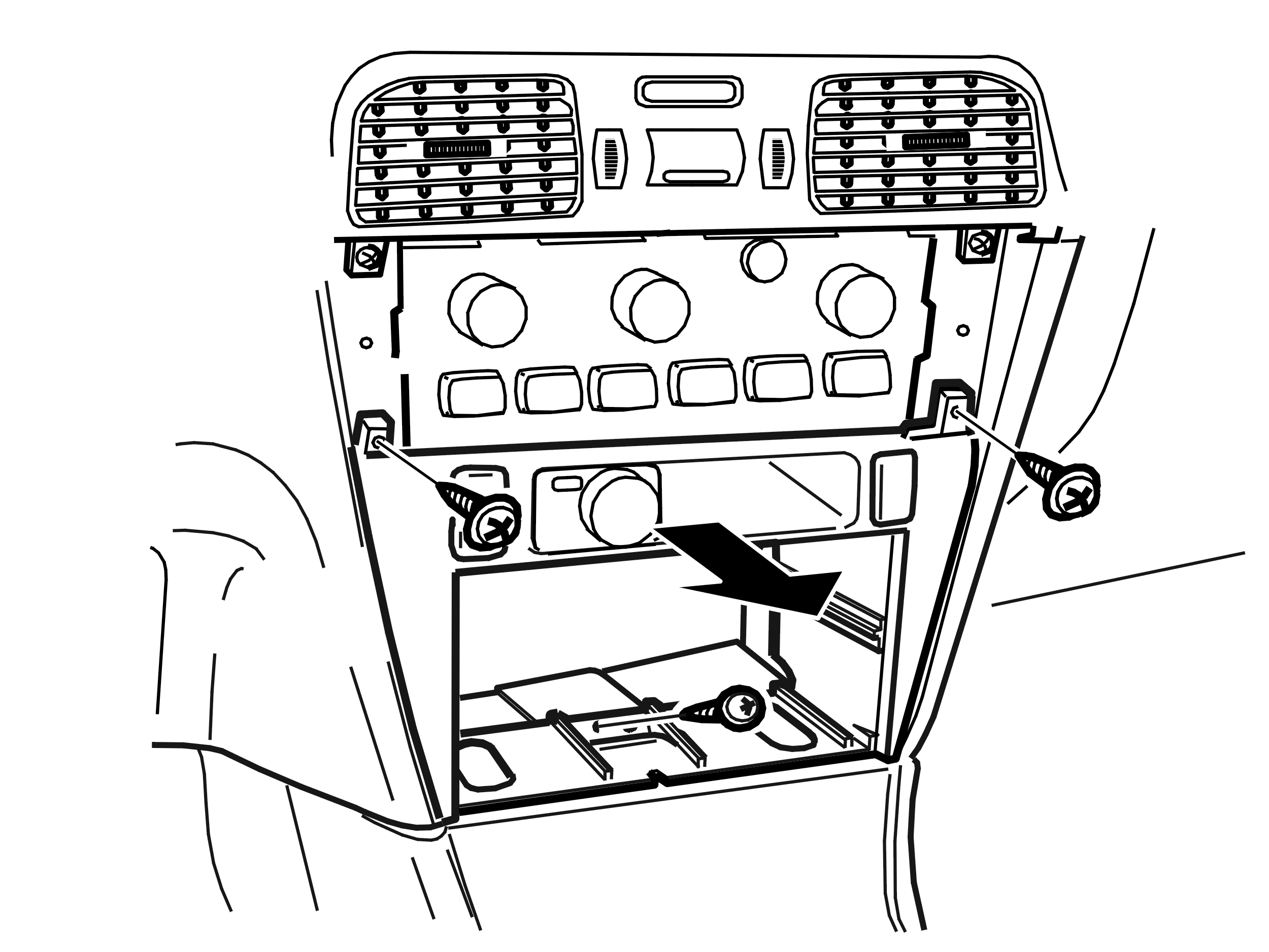

Fig 2: Radio Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the dashboard environment panel according to Dashboard environment panel
the three screws for the bracket
the center console.

If required: Disconnect the connector.
