Air Distribution, Replacing: Removal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

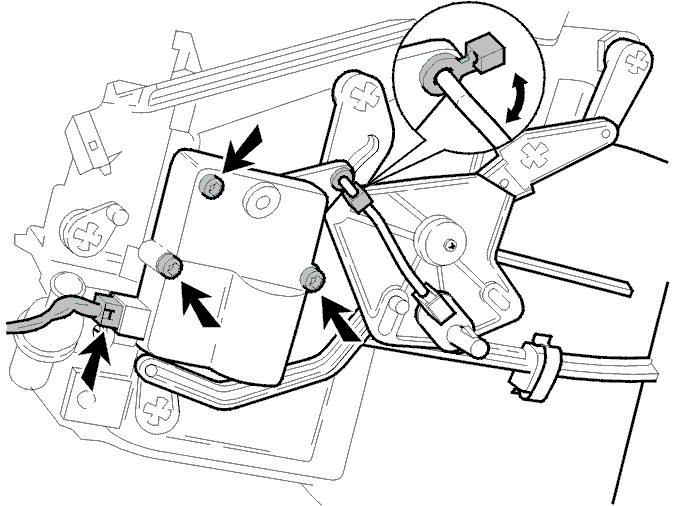

- Remove the lower panel and the center console side panel on the driver's side, see Dashboard
- Turn the retaining clip and pull the rod out from the lever
- Remove the connector and the three screws
- Remove the motor.
