Installing the Passenger Compartment Fan Housing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Check the seals thoroughly before installing.
Install:
- passenger compartment fan housing.
- the power unit with AC. Press the feed unit in place and torque with 25 Nm . Install the AC-pipe on the bracket.
- the power unit according to Power Unit Blower Fan .

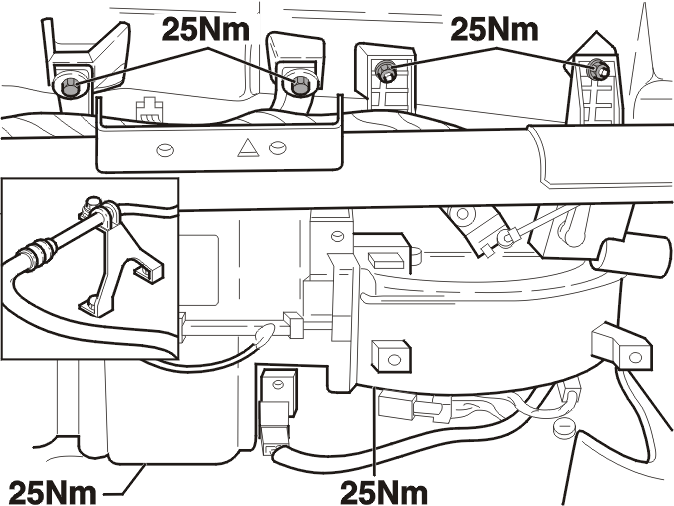

- three screws for passenger compartment fan housing with 25 Nm
.
- the power unit with AC. Press the feed unit in place and torque with 25 Nm . Install the AC-pipe on the bracket.
- the power unit according to Power Unit Blower Fan .
- the connector on the fan housing.
- the power unit with AC. Press the feed unit in place and torque with 25 Nm . Install the AC-pipe on the bracket.
- the power unit according to Power Unit Blower Fan .
- power unit:
- the power unit with AC. Press the feed unit in place and torque with 25 Nm . Install the AC-pipe on the bracket.
- the power unit according to Power Unit Blower Fan .
- instrument panel according to Installing the Dashboard .
