Replacing the Intermediate Section On Cars With Air Conditioning (A/C): Removal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
In the engine compartment
- Drain the system according to Draining

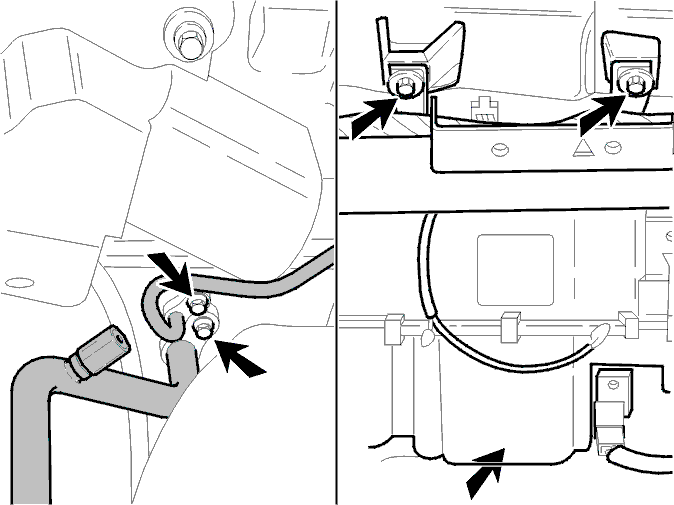

- Disconnect the refrigerant pipe in the engine compartment
- Remove the dashboard according to Dashboard
- Remove the screws and the nut for the intermediate section
- Disconnect the evacuation hose
- Disconnect the connector from the fan control module
- Carefully detach the intermediate section.
