Replacing the Heat Exchanger: Removal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the dashboard according to Dashboard .
Remove the central unit according to Central Electrical Unit .
NOTE:
In event of leakage the O rings can be replaced without the heat exchanger being removed.

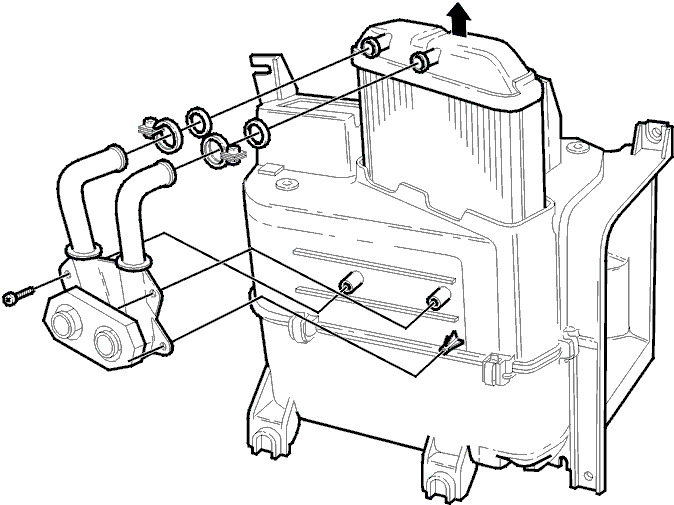

- Remove the support plate. Remove the tie straps and the pipes and replace the O rings
- Remove the mountings from the support plate
- Carefully lift the holder over the guide pins
- Withdraw the heat exchanger and pipes from the housing
- Remove the tie straps and pipes
- Replace the O-rings
- Check the seal.
