Fan Housing, Removing: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

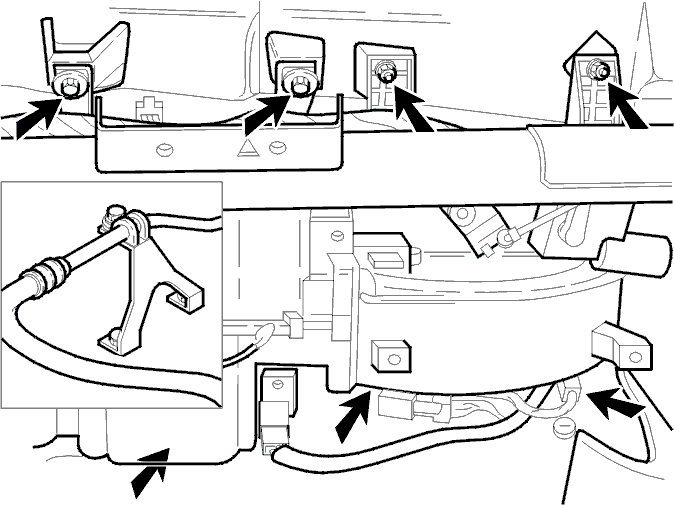

Fig 1: Removing Fan Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the dashboard according to Dashboard .

Cars with air conditioning (A/C):

Remove the air conditioning (A/C) pipe in the engine compartment from the support
Slacken off the bolts on top and the nut underneath. Pull the power unit backwards as far as possible
Remove the connector from the blower fan motor and the recirculation damper motor
Remove the support from the dashboard (2x nuts)
Remove the mounting nuts from the fan housing (3x)
Carefully pull the housing backwards. Remove it with a twisting movement.
