Climate control: Design
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

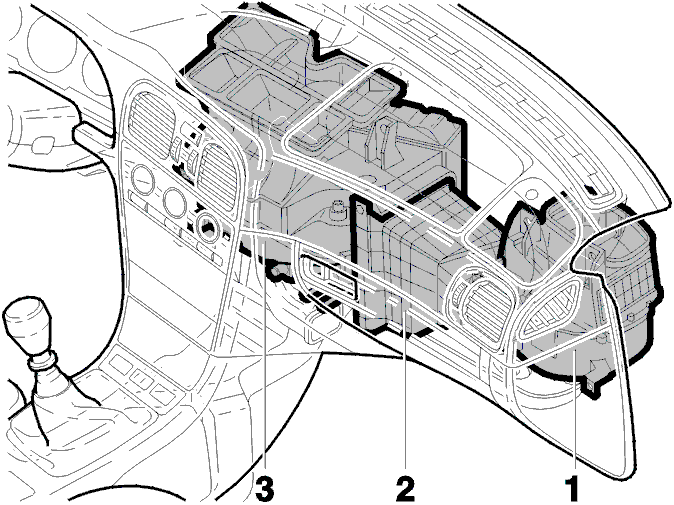

The heating/ventilation system consists of three components.
- Fan housing
- Intermediate section with or without evaporator
- Central unit with heat exchanger.
The dashboard and center console should be removed when removing the complete climate control assembly, fan unit, intermediate section or central unit, according to Dashboard .
The blower fan motor, pollen filter and the resistor can be replaced without removing the dashboard.
