Checking For Coolant Leakage

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Mixing Coolant And Water

Courtesy of VOLVO CARS OF NORTH AMERICA.

First bleed the cooling system. See Filling and bleeding the cooling system .

Check pressure

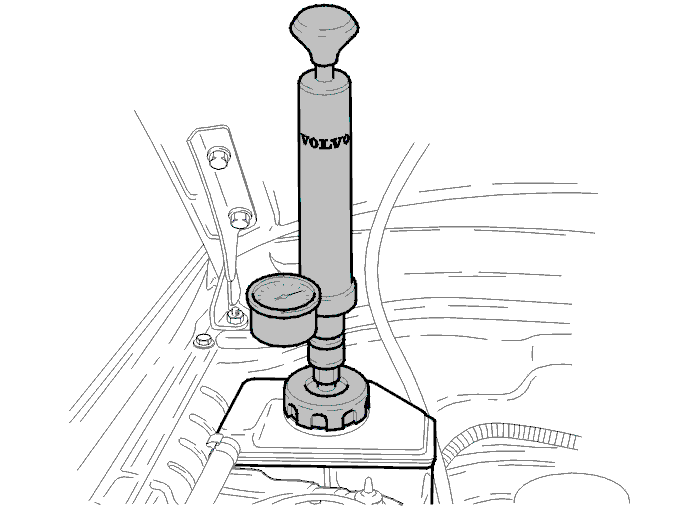

Use pressure gauge 9985496 .

Connect the gauge to the expansion tank.

Increase the pressure using the pump. Check for leaks.

The pressure should be 90-120 kPa
The pressure in the system should not drop noticeably within 30 seconds.
