Install the Clutch Disc

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

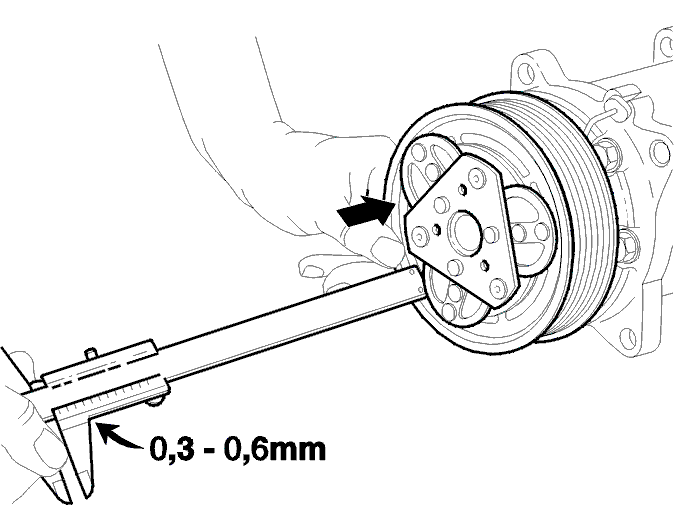

Fig 1: Measuring Height Between Disc And Belt Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the old spacer rings in place on the shaft, and install the clutch disc.

Use a plastic hammer if needed.

Install the centre bolt or nut.

NOTE: Use 9995596 as counterhold.

Gasoline: tighten to 12 Nm.

Diesel: tighten to 18 Nm.

Check clearance between the clutch disc and the belt pulley with a gauge.

Measure the height between the disc and the belt pulley.
Push on the disc and measure the height again.
The difference is the clearance.

Checking and adjusting the value: 0.3 - 0.6 mm

Correct the clearance with the adjusting rings.

Install the compressor, see Install the Compressor
