Front Brake Caliper Reconditioning: Finishing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

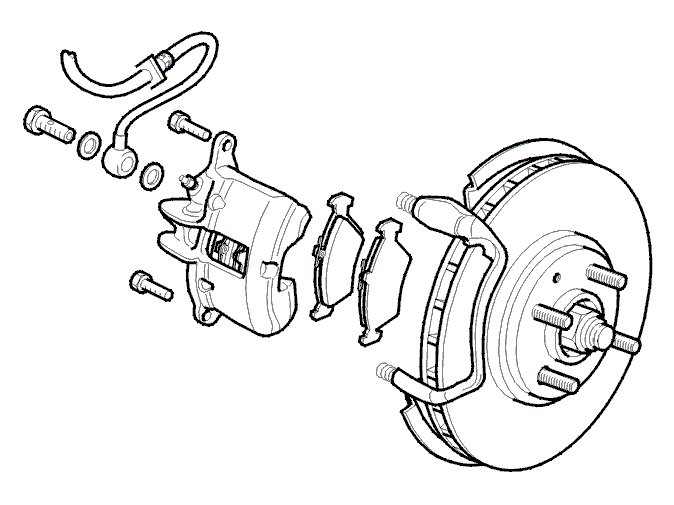

Fig 1: Front Brake Caliper Complete Removal/Install

Courtesy of VOLVO CARS OF NORTH AMERICA.

Inspect

the brake disc, see Checking the Front Brake Disc .
the brake caliper guide, see Checking the Locating Pins For the Front Brake Caliper .

Install the brake pads, paying attention to the wear-indicator.

Install the brake caliper to the guide pins.

Tighten to 35 Nm.

Install the brake hose. Use new sealings.

Tightening torque 15 Nm.

Make sure that the brake hose is not twisted.

Bleed the brake system, see Bleeding Brake System .

Install the wheel, see Installing the Wheels .
