Checking and adjusting the cable at the steering wheel lock cylinder

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

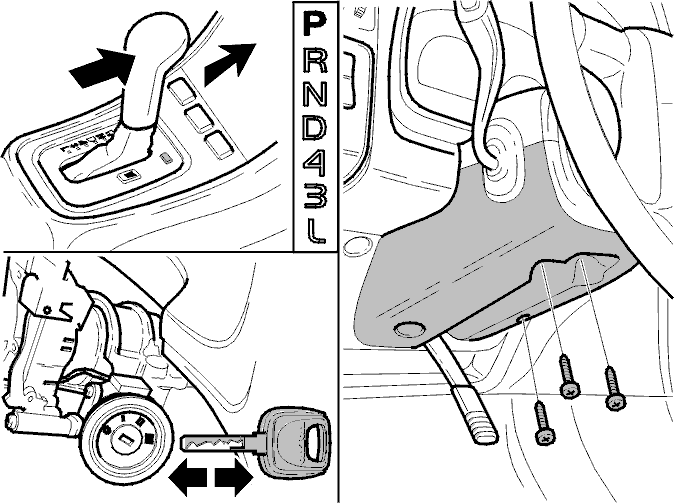

Fig 1: Checking And Adjusting Cable At Steering Wheel Lock Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the key in the ignition switch.

Try to remove the key from the ignition switch with the gear selector in all the different gear positions. Do not use more force than is usually required to remove the key.

NOTE: It should only be possible to remove the key from the ignition switch when the gear selector lever is in P position.

The cable sleeve must be adjusted if the key can be removed from the ignition switch when the gear selector lever is in another position. See Checking and adjusting the cable in the center console .

Install:

the center console according to Rear center console
the lower steering column cover
the lower dashboard.
