Checking and adjusting the cable in the center console

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

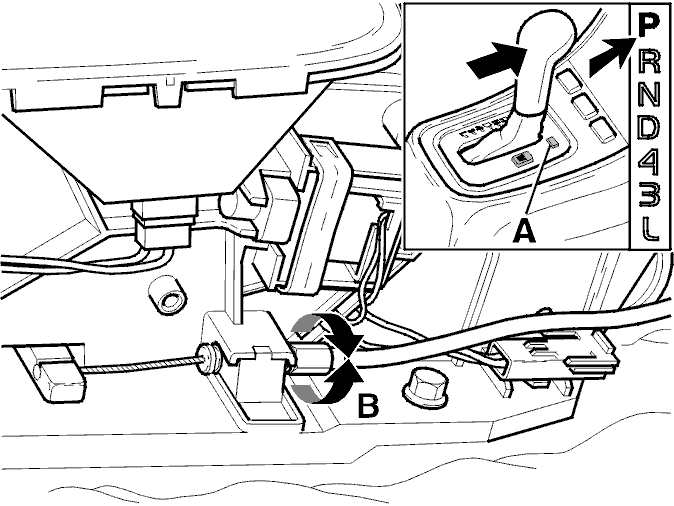

Fig 1: Checking And Adjusting Cable In Center Console

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select P position. The system is locked when P position is selected. It should not be possible to move the gear selector to another position.

Turn the ignition to position 2. Depress the brake pedal or press the SHIFTLOCK OVERRIDE button.

Press the SHIFTLOCK OVERRIDE button (A)
It should now be possible to move the gear selector. Adjust the cable sleeve (B) if the gear selector cannot be moved.
