Installing the shift lock solenoid with micro-switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

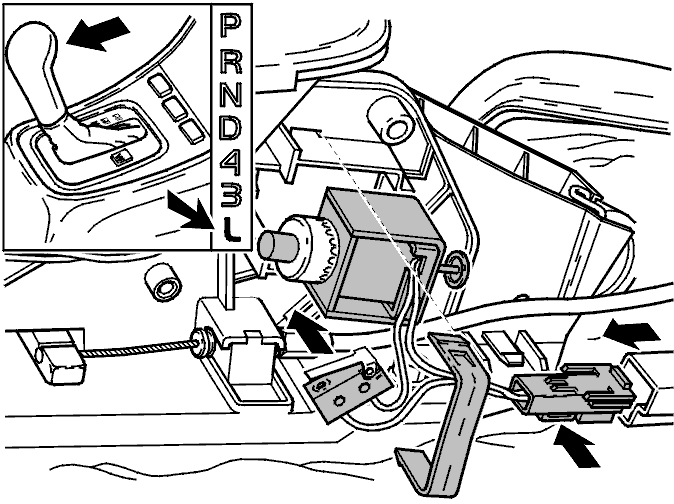

Fig 1: Installing Shift Lock Solenoid With Micro-Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Move the gear selector to position L to prevent damage when removing/installing the micro-switch. Turn the ignition key to position I. Depress the SHIFTLOCK OVERRIDE button to move the gear selector lever.

Press the micro-switch into place on the gear selector.
Install the micro-switch. Secure the micro-switch using the clamp.
Connect the connector. Secure the connector on the gear selector.
Install the center console according to Rear center console .
