Installing the connector and the transmission cable

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

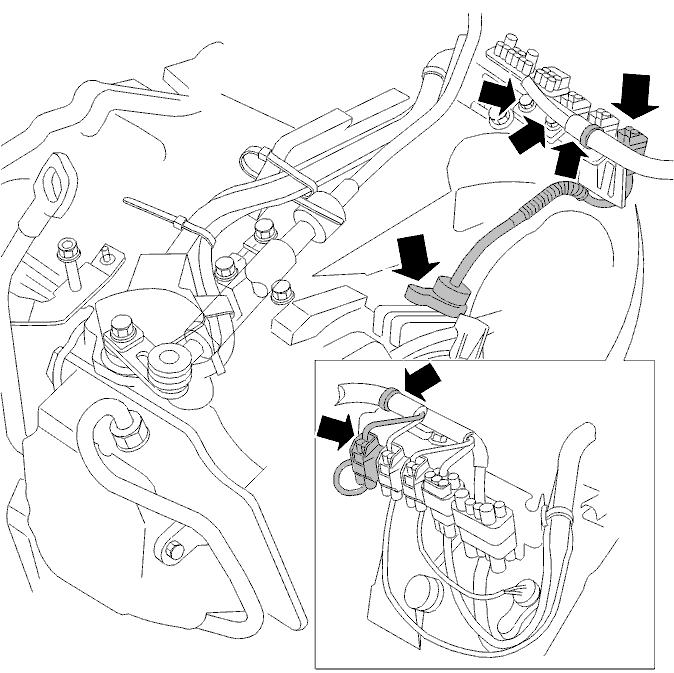

Fig 1: Identifying Cable Harness Secured To Bracket Using Tie Strap
GLL112631Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the sensor connectors. Install the connectors on the bracket

Install the bracket.

Torque: 10 Nm  .

Secure the cable harness to the bracket. Use a tie strap.

Install and adjust the transmission cable according to Adjusting the transmission cable .
